Identify Correct Installation Bracket

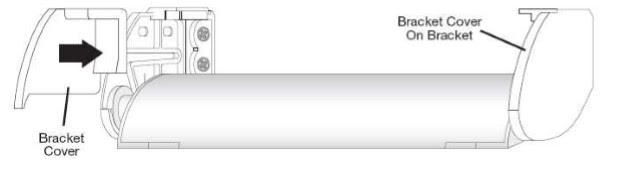

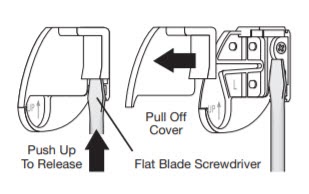

Alouette

There are no parts available for Alouette.



Applause®, Duette®, and Pleated Shade

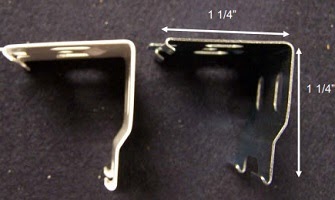

EasyGlide®


PowerRise®

Prior to 5/10 - ⅜” Pleat PowerRise®


PCN 2981708000 / KIT2080 Discontinued

5/10-4/12 - ⅜” Pleat PowerRise®


PCN 3400453000 / KIT2516

4/12-7/15 -  ⅜” Pleat PowerRise®


Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


Prior to 5/10 - ¾” Pleat PowerRise®


PCN 2981708000 / KIT2080 Discontinued


5/10-4/12 - ¾” Pleat PowerRise®


PCN 2780176000 / KIT2514


4/12-7/15 - ¾” Pleat PowerRise®


Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


Prior to 5/10 - 1 ¼” & 1 ½” Pleat PowerRise®


PCN 2981708000 / KIT2080 Discontinued


5/10-4/12 - 1 ¼” & 1 ½” Pleat PowerRise®


PCN 2780176000 / KIT2514


4/12-7/15 - 1 ¼” & 1 ½” Pleat PowerRise®


PCN 2780180000 / KIT2536, replaced with PCN KIT2764

EasyRise™


Prior to 5/09 - ⅜” Pleat EasyRise™

PCN 2980026000 / KIT2340


5/09-4/12 - ⅜” Pleat EasyRise™


PCN 3400453000 / KIT2507


4/12-7/15 - ⅜” Pleat EasyRise™


PCN 2780179000 / KIT2534, replaced with 1046570

Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


Prior to 5/09 - ¾” Pleat EasyRise™


PCN 2980021000 / KIT2035


5/09-4/12 -  ¾” Pleat EasyRise™


PCN 2780176000 / KIT2514


4/12-7/15 -  ¾” Pleat EasyRise™


PCN 2780179000 / KIT2534, replaced with 1046570

Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


Prior to 5/09 -  1 ¼” & 1 ½” Pleat EasyRise™


PCN 2980216000 / KIT2131


5/09-4/12 -  1 ¼” & 1 ½” Pleat EasyRise™


PCN 2780176000 / KIT2514

4/12-7/15 -  1 ¼” & 1 ½” Pleat EasyRise™


PCN 2780180000 / KIT2536, replaced with PCN KIT2764

½” Manhattan


PCN 2950062000 / KIT2001. Manhattan discontinued 9/03, brackets still available.



2” Splendor


EasyRise used PCN 2980021000. Splendor discontinued 1998, brackets still available.



PowerView®

3/8" Pleat & 3/4" Pleat PowerView®


PCN1046570

Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


1 1/4" Pleat & 1 1/2" Pleat PowerView®


PCN 2801473000 / KIT2764

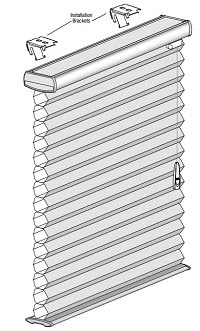

TruRise®


PCN 2990934000 / KIT250

EasyView

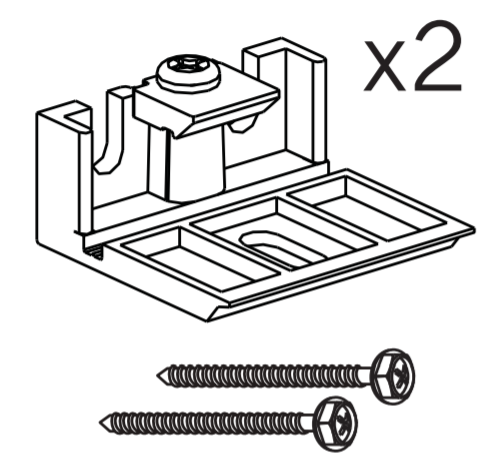

PCN 2950062000 / KIT2001

Simplicity™ & Standard Cord Lock


⅜” Standard Cord Lock


PCN 2950062000 / KIT2001


¾” Standard Cord Lock


PCN 2970061000 / KIT2005



⅜” End Mount Simplicity™ & Standard Cord Lock


PCN 2980038000



¾” End Mount Simplicity™ & Standard Cord Lock


PCN 2980050000


⅜” Swivel Simplicity™ & Standard Cord Lock


PCN 2250071785 / KIT2319



¾” Swivel Simplicity™ & Standard Cord Lock


PCN 2270071785 / KIT2323


2” Splendor Simplicity™ & Standard Cord Lock
PCN 2950062000 / KIT2001 No photo of the headrail are available.

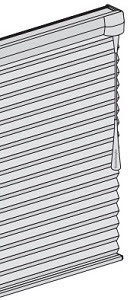

UltraGlide®


Prior to 5/09  ⅜” Pleat UltraGlide®


PCN 2982001000 / KIT8100


5/09-4/12 UltraGlide® ⅜” Pleat UltraGlide®


PCN 3400453000 / KIT2507


4/12-7/15 UltraGlide®


PCN 2780179000 / KIT2534, replaced with 1046570

Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


Prior to 5/09 UltraGlide® ¾” Pleat UltraGlide®


PCN 2982001000 / KIT8100


5/09-4/12 UltraGlide® ¾” Pleat UltraGlide®


PCN 2780176000 / KIT2514


4/12-7/15 UltraGlide® ¾” Pleat UltraGlide®


PCN 2780179000 / KIT2534, replaced with 1046570

Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


Prior to 5/09 -  1 ½” & 1 ½” Pleat UltraGlide®

PCN 2990934000 / KIT2501


5/09-4/12 -  1 ½” & 1 ½” Pleat UltraGlide®


PCN 2780176000 / KIT2514


4/12-7/15 -  1 ½” & 1 ½” Pleat UltraGlide®


PCN 2780180000 / KIT2536. replaced with PCN KIT2764


LiteRise®

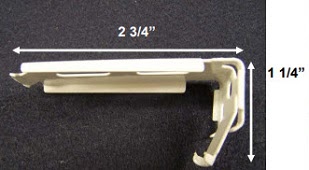

Prior to 9/07  ⅜” Pleat LiteRise®


PCN 5908038000


9/07-8/08 LiteRise®


PCN 2780085785, replaced with PCN 3400453000 / KIT2507


8/08-4/12 LiteRise®


PCN 3400453000 / KIT2507


4/12-7/15 LiteRise®


PCN 2780179000 / KIT2534, replaced with 1046570

Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


Prior to 9/07 ¾” Pleat LiteRise®


PCN 2982001000 / KIT8100


9/07-8/08 ¾” Pleat LiteRise®


PCN 2780086785, replaced with PCN 2780176000 / KIT2514


8/08-5/09 ¾” Pleat LiteRise®


Replaced with PCN 2780176000 / KIT2514


5/09-4/12 ¾” Pleat LiteRise®


PCN 2780176000 / KIT2514


4/12-7/15 ¾” Pleat LiteRise®


PCN 2780179000 / KIT2534, replaced with 1046570

Note: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758


Prior to 9/07 -  1 ¼” or 1 ½” Pleat LiteRise®


PCN 2990934000 / KIT2501


9/07-8/08 -  1 ¼” or 1 ½” Pleat LiteRise®


PCN 2780086785, replaced with PCN 2780176000 / KIT2514


8/08-5/09 -  1 ¼” or 1 ½” Pleat LiteRise®


Replaced with PCN 2780176000 / KIT2514


5/09-4/12 -  1 ¼” or 1 ½” Pleat LiteRise®

PCN 2780176000 / KIT2514


4/12-7/15 -  1 ¼” or 1 ½” Pleat LiteRise®


PCN 2780180000 / KIT2536, replaced with PCN KIT2764

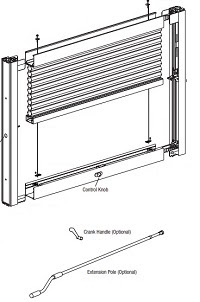

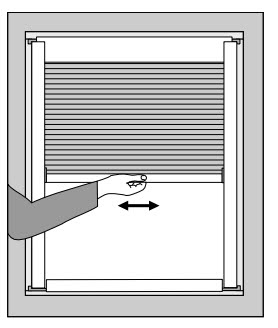

SkyLift™/SkyRise®


KIT2100


Any OS - 3/8" & 3/4" Pleat Manufactured After 7/15 SkyLift™/SkyRise®


PCN 1046570 (NOTE: PCN 1046570 goes into effect on 4/29/2025, replacing KIT2758)

End Mount Brackets for 3/8" & 3/4" Pleat Manufactured After 7/15
LR, PV, and UG. Available for ER after 2019.

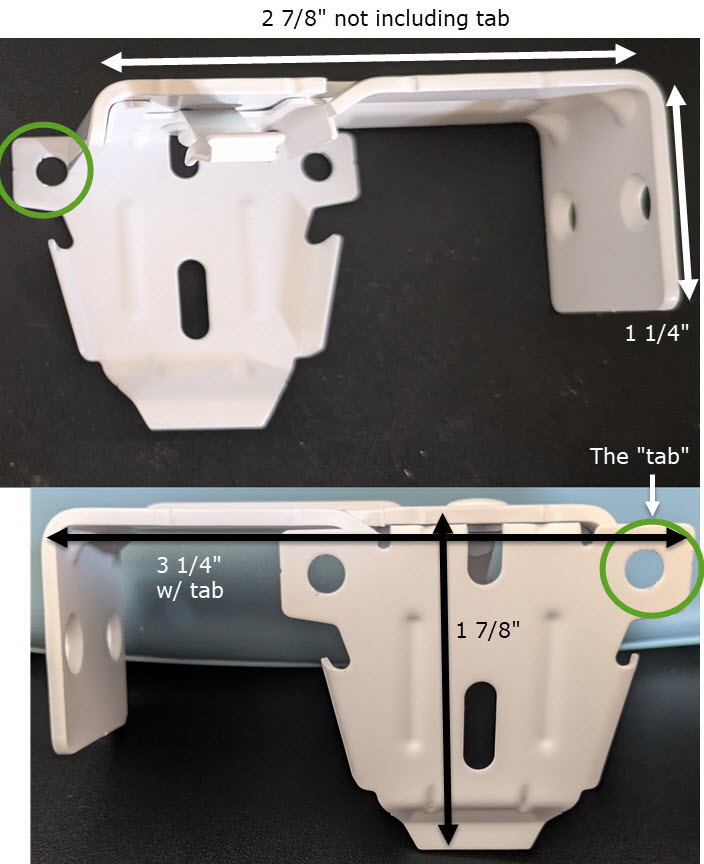

KIT2762

Any OS - 1 1/4" & 1 1/2" Pleat Manufactured After 7/15 SkyLift™/SkyRise®


PCN 2801473000 / KIT2764

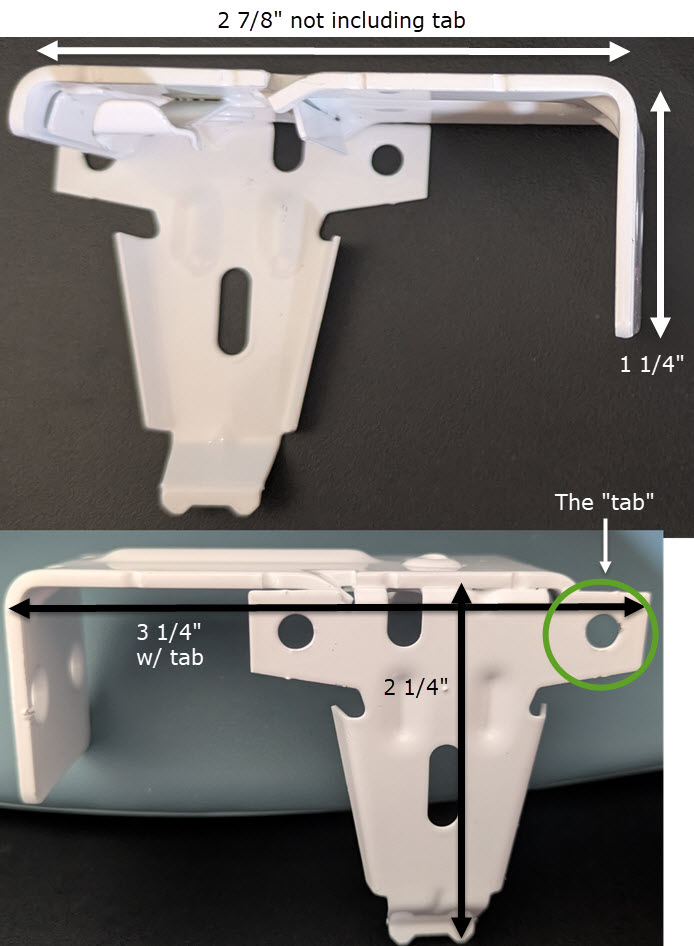

End Mount Brackets for 1 1/4" Pleat Manufactured After 7/15
LR, PV, and UG. Available for ER after 2019.



KIT2768

Vertiglide™

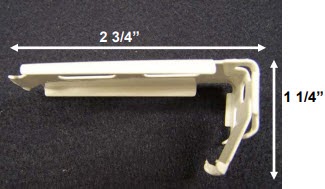

Prior to 9/04 Vertiglide™
There are two types of brackets that could have been used on a Vertiglide from prior to 9/04. Both are discontinued and no parts are available.



9/04-5/15 Vertiglide™
 PCN 2990934000 / KIT2501


After 5/15 Vertiglide™


KIT2536, replaced with PCN KIT2764


Design Studio™

Roller Shade


Large Cassette Brackets, 2 Pack
Color PCN Black KIT6140 Gold KIT6144 White KIT6142 (Obsolete)

Note: Spray paint could be a workable solution for colors that become obsolete.

Roman Shade

There are two types of brackets, depending on the application of the shade:


 3-3/4” Extension Bracket (3.5" to the center of the last slot on the bracket)

Modern Headrail Installation Brackets

KIT2013 (2 pack) KIT2014 (3 pack)

White Tiara (KIT5708) or Black (KIT5710)

Drapery
Brackets are part of a purchasable replacement hardware package. If a consumer requires replacement hardware, they should work through their dealer.

Designer Banded, Roller & Screen

Cassette Designer Banded, Roller & Screen

​​​​Before September 2007


PCN RC450012

September 2007- before May 3rd, 2022  Designer Banded, Roller & Screen



The new 2.0 brackets will not work for the older style shades


Small & Large BlackKIT6140 (Obsolete), KIT6141 Small & Large Gold KIT6144, KIT6145, Small & Large White KIT6142 (Obsolete), KIT6143(Obsolete), Large Only, Nickel 1003053(Obsolete), 1003055, Large Only Desert Tan, 1003054, 1003056.

Note: Spray paint could be a workable solution for colors that become obsolete.


May 3, 2022 - Present Designer Banded, Roller & Screen
​​​​


No Cassette Designer Banded, Roller & Screen

Custom Clutch Designer Banded, Roller & Screen

Note: Select Design Screen Shades with R24 with Spring Assist Clutch with a width between 156"-192" wide may use the following bracket.



Galaxy Geared Clutch Bracket KIT6165


Prior to 4/16 Designer Banded, Roller & Screen

1 ½” Tube Size for Designer Banded, Roller & Screen


Roller 1 ½” Installation Bracket (R3 and R8) in Black KIT6016 and White KIT6020


2” Tube Size for Designer Banded, Roller & Screen


Roller 2” Installation Bracket (R3 and R8) in Black KIT6018 or White KIT6022


4/16-Present Designer Banded, Roller & Screen

Bracket M or L Clutch (White) Tube Size PCN 1.5 RN10446612  RN1045661 OR RN10466613 RN1047661 ​​​​​

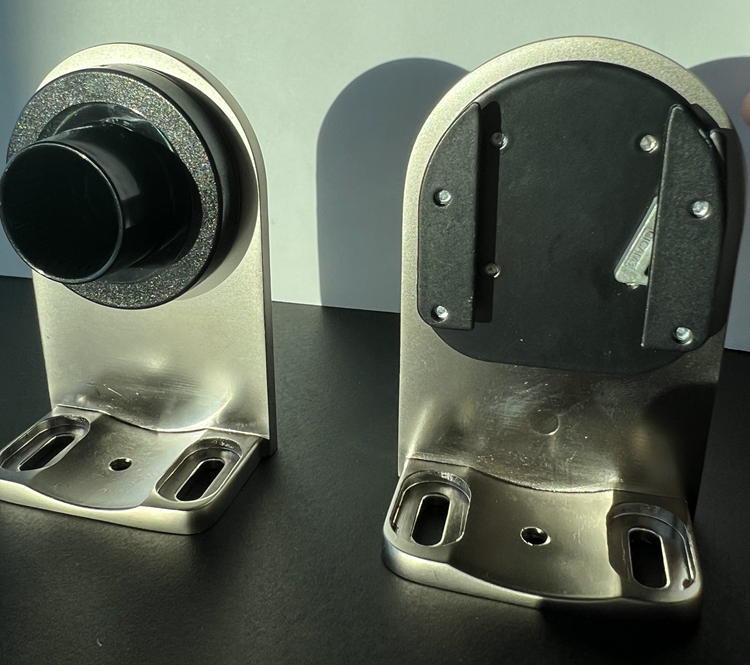

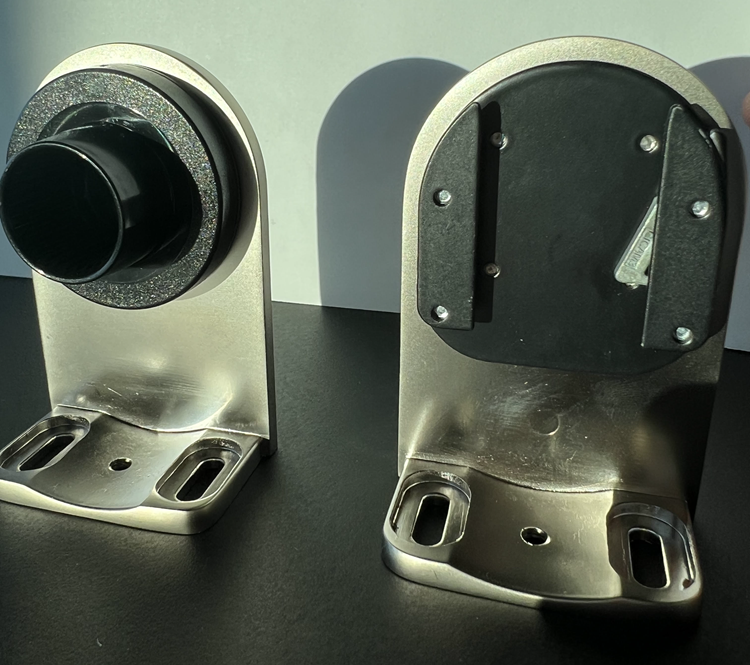

Designer Metal Bracket



See the Products Component Guide for part numbers. Not available with the 2" or 2 1/2" tube design option.


Cordless, LiteRise & SoftRise Designer Banded, Roller & Screen


Mounting Brackets - PCN RC445172


PowerRise Designer Banded, Roller & Screen
All brackets for PowerRise roller shades without a cassette have been discontinued. No parts available.


PowerView & SoftTouch Designer Banded, Roller & Screen

Bracket M or L Clutch (White) Tube Size PCN 1.5” RN10446612 RN1045661 OR RN10466613 RN1047661​​​​​

Designer Metal Bracket



See the Products Component Guide for part numbers. Designer Metal Bracket upgrade option available for PowerView Standard only.


UltraGlide Designer Banded, Roller & Screen

Bracket M or L Clutch (White) Tube Size PCN 1.5 RN10446612, RN1045661 OR RN10466613, RN1047661​​​​​

EverWood® & First Edition

2" LP Installation Bracket, 2 Pack Color PCN Black 5003046048, Camel 5003046082, Fawn 5003046205, Gloss White 5003046110, Sweet Chocolate 5003046378, Antique White 5003046973, Short Extension Bracket (2") KIT4380, Long Extension Bracket (4") KIT4382



2” (Short) & 4” (Long)
Low Profile HeadrailKIT 4380 (2 Pack Short)
KIT4381 (3 Pack Short)
KIT4382 (2 Pack Long)
KIT4382 (3 Pack Long) 2”, 2 ½”  Slats


Important: Not all options are available for every blind. Consult the Reference Guide for options for each blind style.

Jubilance

PCN RMC632002

Luminette®

Ceiling/Inside Mount Luminette®

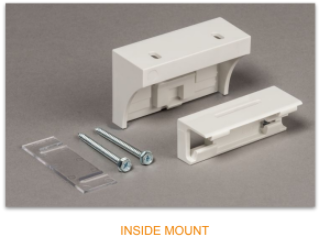

Installation Bracket Kit, IB
PCN 1021092 (White Diamond)
PCN 1021093 (Dark Fawn) not available on Wand/Cord in Canada
PCN 1021094 (Silver Reflection) not available on Wand/Cord in Canada
PCN 1021095 (Bronze Shimmer) not available on Wand/Cord in Canada
PCN 1021096 (Midnight Oil) not available on Wand/Cord in Canada
PCN 1021097 (Dove Gray) not available on Wand/Cord in Canada

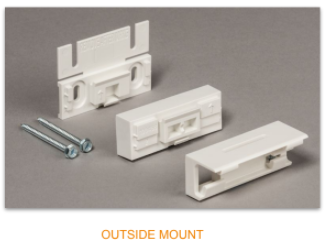

Outside Mount Luminette®


Installation Bracket Kit, OB
PCN 1021098 (White Diamond)
PCN 1021099 (Dark Fawn) not available on Wand/Cord in Canada.
PCN 1021100 (Silver Reflection) not available on Wand/Cord in Canada.
PCN 1021101 (Bronze Shimmer) not available on Wand/Cord in Canada.
PCN 1021102 (Midnight Oil) not available on Wand/Cord in Canada.
PCN 1021103 (Dove Gray) not available on Wand/Cord in Canada.


Ceiling Mount Luminette® Aug. 2000 to April 16, 2022

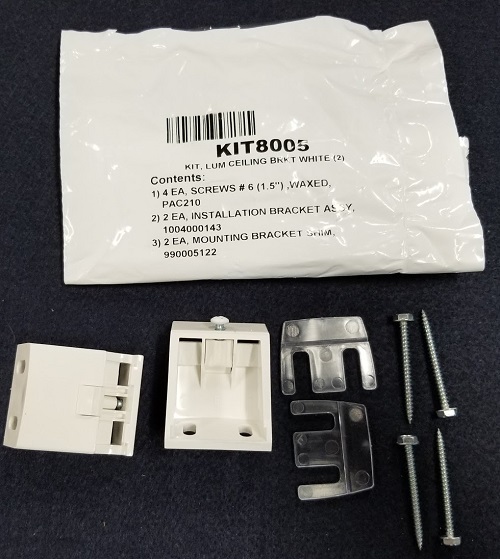

Luminette Ceiling Mount Bracket in White (KIT8005) or Dove Grey (KIT8088)

If the product is from before August 2000 (shown below), the newer style brackets shown above will work. All brackets on the shade should be replaced at the same time.




Standard Luminette®

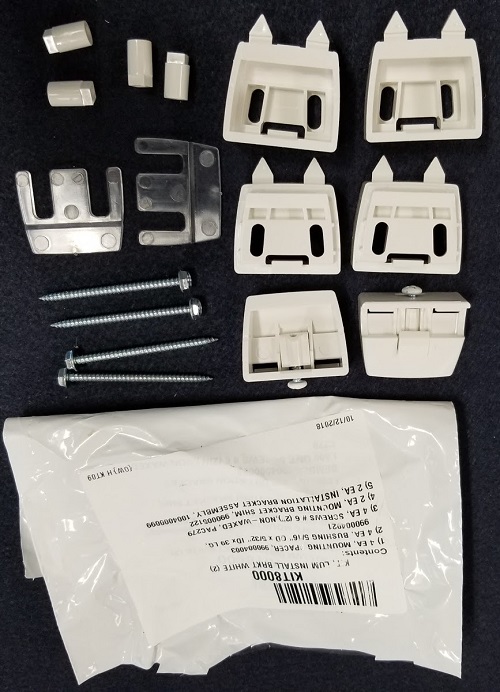

Luminette Standard Installation Bracket (KIT8000)

If the product is from before August 2000 (shown below), the newer style brackets shown above will work. All brackets on the shade should be replaced at the same time.


Modern Precious Metals®

Celebrity

Before May 2009, Celebrity

Had the option of using a standard bracket or a beveled box bracket. Both will work on the same headrail; it is the consumer’s preference.

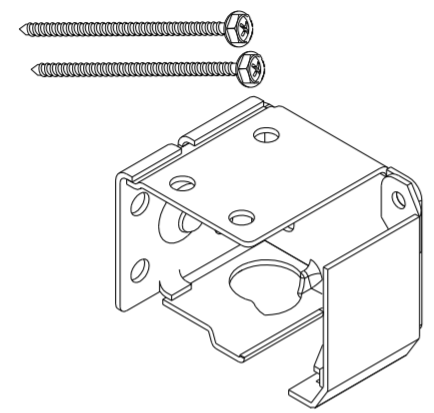

Beveled Box Bracket - 5908237186 (Beige) or 5908237110 (Gloss White)

Beveled Intermediate Support Bracket - 5008556000

Hidden Installation Bracket 1" and 1/2" - KIT1303


May 2009-Present, Celebrity

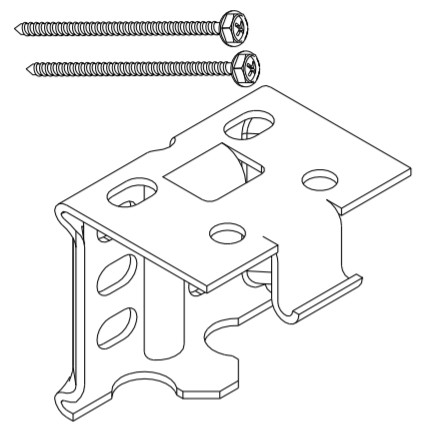

Celebrity blinds had the option of using a standard bracket or a beveled box bracket. Both will work on the same headrail; it is the consumer’s preference.


Beveled Box Bracket - 5908237186 (Beige) or 5908237110 (Gloss White)

Beveled Intermediate Support Bracket - 5008556000

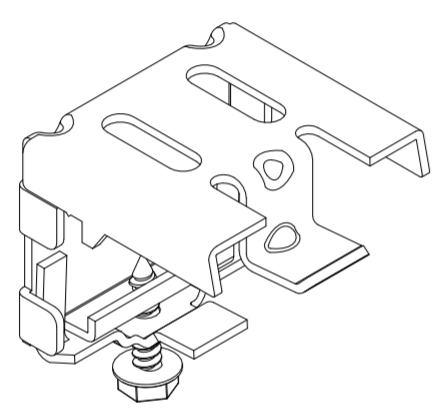

Hidden Installation Bracket 1" and 1/2"  - KIT2120

Lightlines & Decor Modern Precious Metals®

Before 2003 Lightlines & Decor



PCN 5908038000

2003-May 2009 Lightlines & Decor


Hidden Installation Bracket 1" and 1/2" - KIT1303


May 2009-Present Lightlines & Decor


Hidden Installation Bracket 1" and 1/2"  - KIT2120

Nantucket™, Pirouette® & Silhouette®

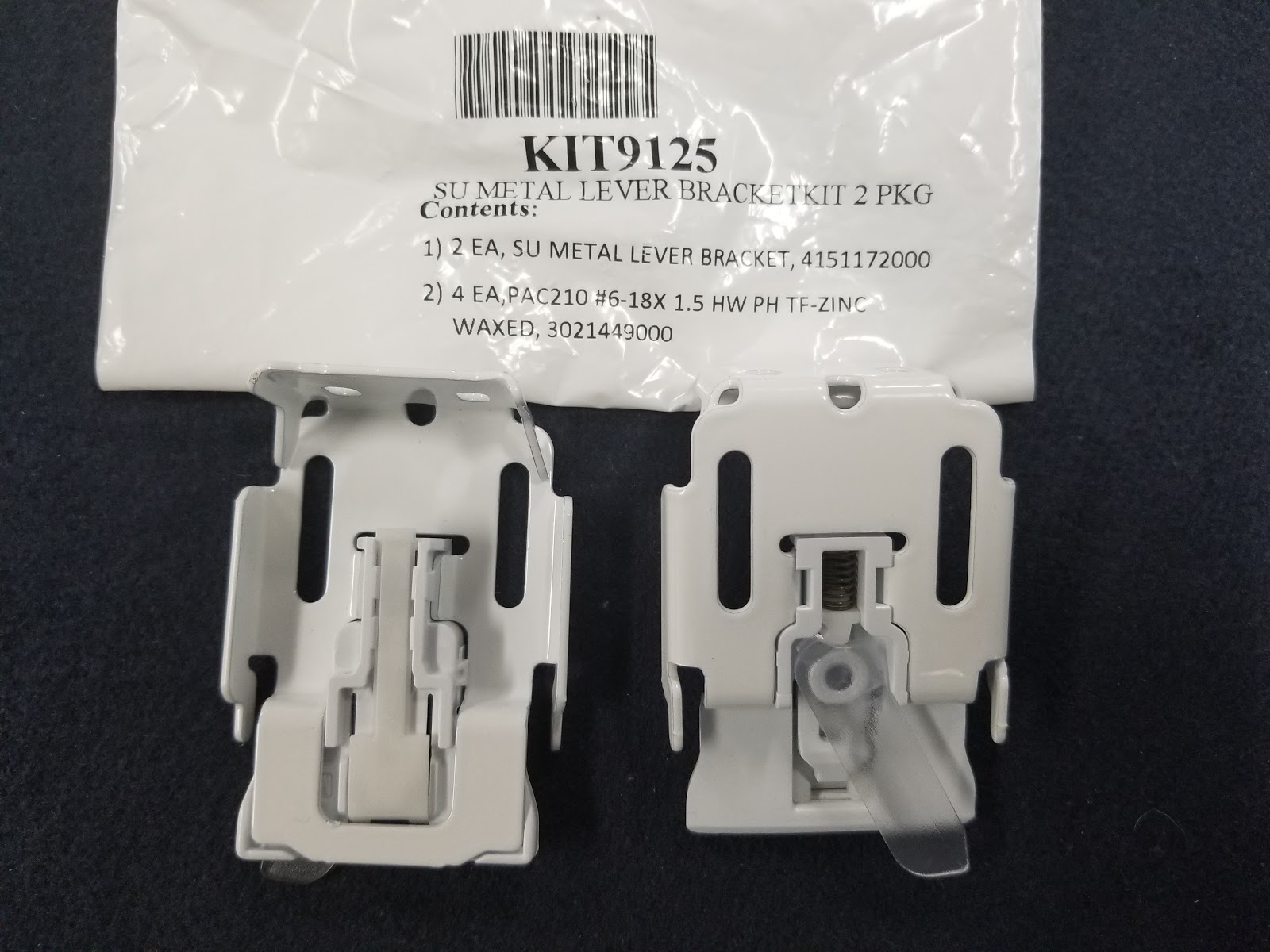

Metal Lever Installation Bracket 2 Pack (KIT9125)

Other brackets have been used on Nantucket and Silhouette, but this is the only current bracket. It will work on all past Silhouette headrails.

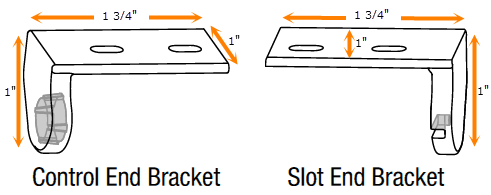

Tilt Only Low Profile Installation Bracket

Note: Tilt Only Low Profile Installation Bracket thickness is 3/16".Installation Bracket Set w/Screws
Left Control - 4158445000
Right Control - 4158446000

Parkland & Chalet Woods

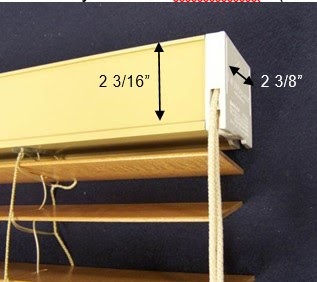

2 Inch Liftmaster (Country Woods Only)


This product was discontinued in 2004. No parts are available.


2 Inch or 2 ⅝ Inch Parkland & Chalet Woods




2” LP Installation Bracket

Color PCN Black5003046048 Camel5003046082 Fawn5003046205 Gloss White5003046110 Sweet Chocolate 5003046378 Antique White5003046973


Intermediate Center Support BracketKIT1018



2” (Short) & 4” (Long)
Low Profile HeadrailKIT 4380 (2 Pack Short)
KIT4381 (3 Pack Short)
KIT4382 (2 Pack Long)
KIT4382 (3 Pack Long)2”, 2 ½”  Slats

Important: All options are NOT available for every blind. Consult the Reference Guide for options for each blind style.


1” x 1” Parkland & Chalet Woods
1" Installation Bracket (2 Pack) - No Picture Available
Glacier White 5008037001
Bronze 5008037064


1” x 1 ½” Parkland & Chalet Woods


1 ½" Installation Bracket (2 Pack)
Glacier White5004037001
Sweet Chocolate 5004037378
Center Support Bracket 5004556000
Long Extension Bracket5008073000
Short Extension Bracket5008070000

Provenance

Modern Headrail Installation Brackets in White Tiara (KIT5708) and Black (KIT5710).

Skyline®

Cassette Bracket Skyline®

LG Cassette Bracket 2 Pack in White KIT6142 (Obsolete)

Note: Spray paint could be a workable solution for colors that become obsolete. Refer to KIT6140 (Black) or KIT6144 (Gold).

Inside Mount Bracket Skyline®

Skyline Snap-On IB Mount Clip 2 Pack (KIT6121)

Outside Mount Bracket Skyline®

3.5” L Bracket with Clip
Bronze 7707817
Gold 7708800
Ivory 7707813

Solera®

KIT5708

Sonnette™

KIT7000 (2-Pack)
KIT7001 (3-Pack)

3-3/4” Extension Bracket 1 ¼” wide, 1 ⅜” tall, 3 ¾” long
KIT2013 (2 pack) KIT2014 (3 pack)

Trio

PCN 2980021000 / KIT2035

Verticals

Cadence®, Crosswinds, Somner® & Vertical Solutions®

Paramount Headrail

Before 2000 Verticals Paramount Headrail

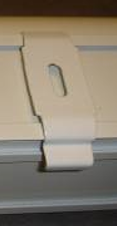

Paramount Mounting Clip with Locking Tab - PCN 99850

2000-Present Verticals Paramount Headrail

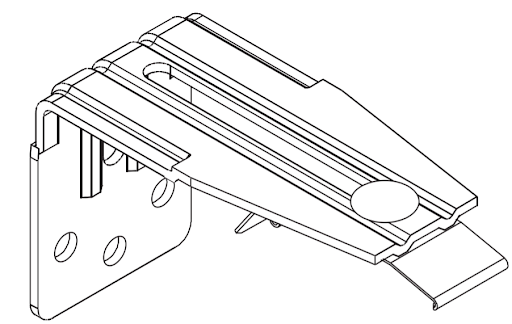

3.5” Paramount L Bracket with Clip
PCN 1020765 (2 pack)
PCN 1020766 (3 pack)

PermaTrak Headrail (and PermAlign Disc. 2022)

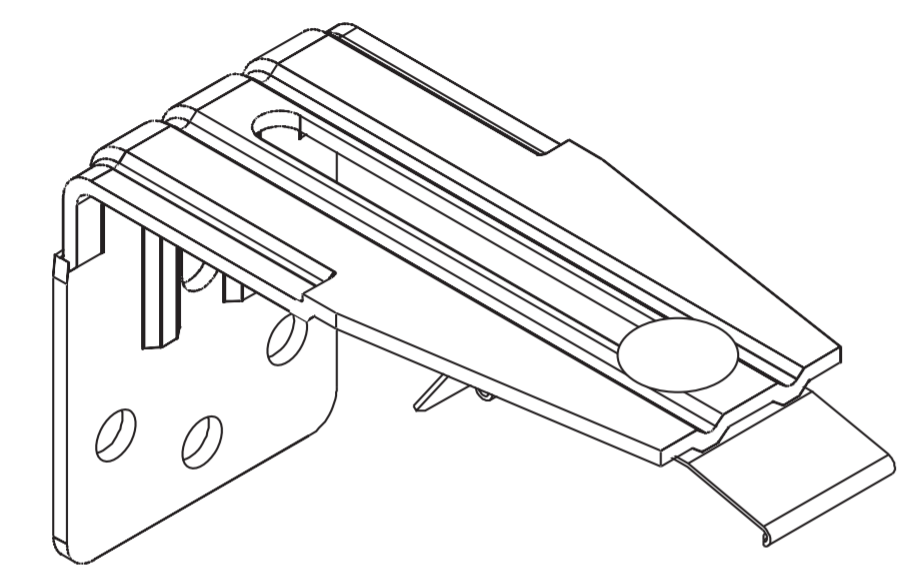

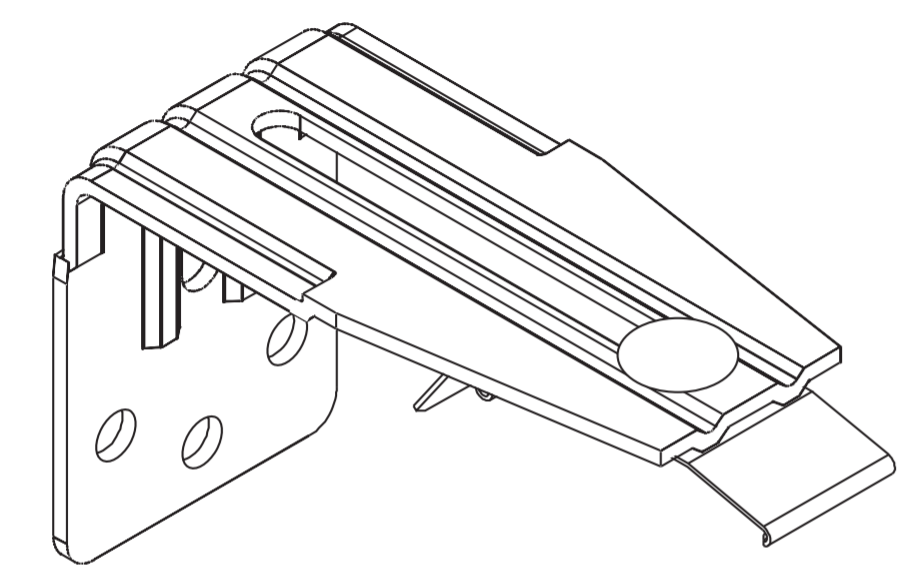

3.5” PermaTrak/PermAlign (Disc. 2022) L Bracket with Clip
PCN 1020763 (2 pack)
PCN 1020764 (3 pack)


4.5" PermaTrak Headrail Extension Plate

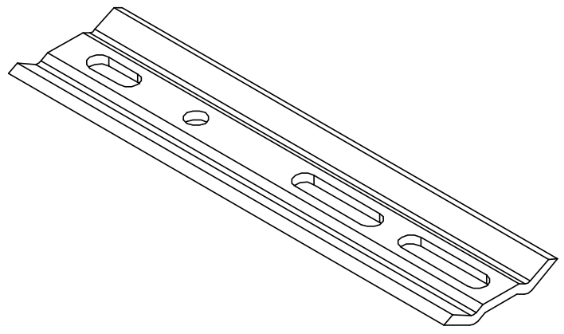

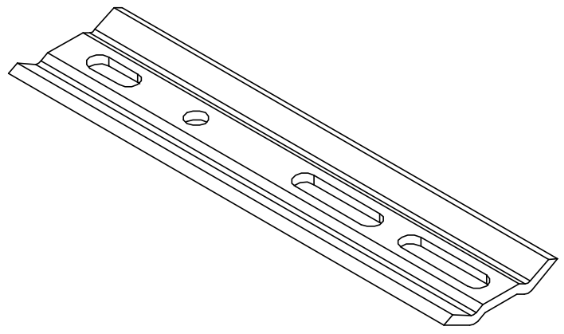

4 1/2" Slider Extension Plate
PCN 7704851

Vignette®

Rolling Vignette®

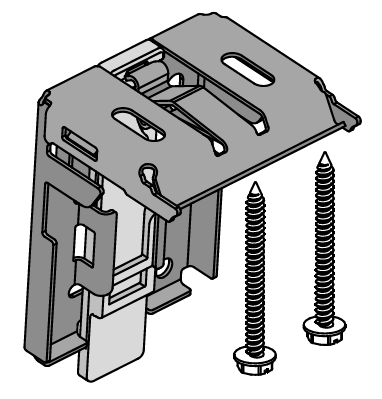

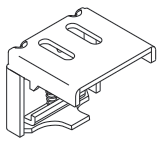

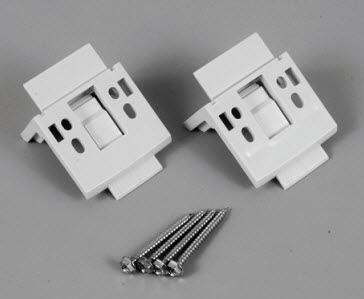

KIT9205 and current bracket PCN 340024000. Older shades may have used this plastic bracket. The metal bracket will retrofit to all ages of Vignette Rolling Shades.

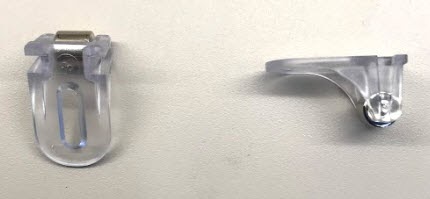

Optional magnetic hold-down brackets: KIT9108.


Optional plastic pin hold-down brackets: KIT2009. If the shade is from 2002 or earlier, this is a different part number that is retrofittable with the product. Order enough brackets to replace all brackets on the headrail.


Specialty Vignette®

KIT2001


Stacking Vignette®

KIT2507


Optional magnetic hold-hown brackets: KIT9108.


Optional plastic pin hold-down brackets: KIT2009. If the shade is from 2002 or earlier, this is a different part number that is retrofittable with the product. Order enough brackets to replace all brackets on the headrail.

Determine Operating System

EasyGlide

A system that was discontinued in September of 2003. This system uses a continuous cord loop that can be used to raise and lower the shade. After lowering the shade all the way, the shade will begin to raise if you continue to pull the cord in the same direction.

EasyRise

A system that uses a continuous cord loop to raise and lower the shade. Pulling down on the rear cord will lower the shade and pulling down on the front cord will raise the shade.

EasyView

A system designed for arches. To close the shade, slide the arch handle to the right. To open the shade, slide the arch handle to the left.

LiteRise

A system that uses a handle to raise and lower the shade. The handle can either clip on or screw into the moving rail. Note that this is different from Simplicity, which uses a handle that is designed to be used with an extension pole for hard-to-reach windows.

PowerRise

The motorized operating system was used prior to 7/2015. A PowerRise shade will have a programming button on the headrail and will typically be accompanied by a remote that has either numbers 1-2 or 1-4 on it. Sometimes, the Platinum app will also be used to operate this product.

PowerView

The motorized operating system has been used since 7/2015 forward. A PowerView shade will have a programming button on the headrail and will typically be accompanied by a remote with numbers 1-6 on it or a scene controller. Sometimes, the PowerView app will also be used to operate this product.

Simplicity

The system features a large handle designed for use with an extension pole, making it ideal for accessing hard-to-reach windows.

SkyLift

A system designed for skylights that uses a control knob to operate. This can be used with an optional crank handle or extension pole.

SkyRise

An operating system that uses a looped handle to operate, designed for Skylights and hard-to-reach locations. The looped handle is moved from side to side rather than up and down to operate the shade.

Standard Cordlock

An operating system uses a cord that gets longer when you pull it. This cord may have a teardrop-shaped or a cowbell-shaped tassel at the end. To raise or lower the shade, disengage the cord lock by moving the cord toward the center of the shade. Pull on the cord to raise the shade and engage the cord lock by returning the cord to the original position.

TruRise

A system that was discontinued in May of 2010. This system uses counterbalance weight to control the shade. The shade stays in position when you let go of the tassel.

UltraGlide

A system that may have either a retractable wand or a retractable cord. The wand or cord is pulled at a 45° angle to lower the shade and is pulled straight down to raise the shade.

Vertiglide

A system that moves side-to-side, rather than up and down. Vertiglide may be motorized or it may use a handle.

BACK TO TOP
