Summary:
Explains the battery wand types used across Hunter Douglas products, including voltages, part identifiers, and how to recognize Legacy PowerView® (prior to Fall 2022) versus PowerView® Gen 3 (after Spring 2022) options.

Applies To:
Designer Roller and Screen, Duette®, Applause®, Parkland®, EverWood®, Modern Precious Metals®, Palm Beach™ Shutters, Pirouette®, Provenance®, Silhouette®, Vignette®, Skylight, PowerView® Gen 3, Legacy PowerView®, PowerRise

Battery Wand by Product

1. Designer Roller and Screen
2. Duette® and Applause®
3. Duette® Skylight
4. Parkland®, EverWood®, Modern Precious Metals®
5. Palm Beach™ Shutters
6. Pirouette®
7. Provenance®
8. Silhouette®
9. Vignette®

Battery Types and Identification

10. Rechargeable Battery Options
11. Satellite Battery Packs
12. Enhanced End Cap Identification

Overview

Battery wands provide low-voltage power for Hunter Douglas window treatments. Options vary by product family and system generation. This guide identifies common wand types, voltage/AA count, key PCNs, and high-level availability so you can select the correct power source or recognize what’s installed.

Designer Roller and Screen

12AA 18V wand; Enhanced End Caps PCN 7520068000 (empty) / 7520066000 (preloaded).
If only a replacement battery wand clip is needed, part number PCN 7520068000 should be used for a high mount, and part number PCN 2920540000 for a low mount clip.
If only a replacement Battery Pack Mounting Kit cover, KIT2791, should be used.

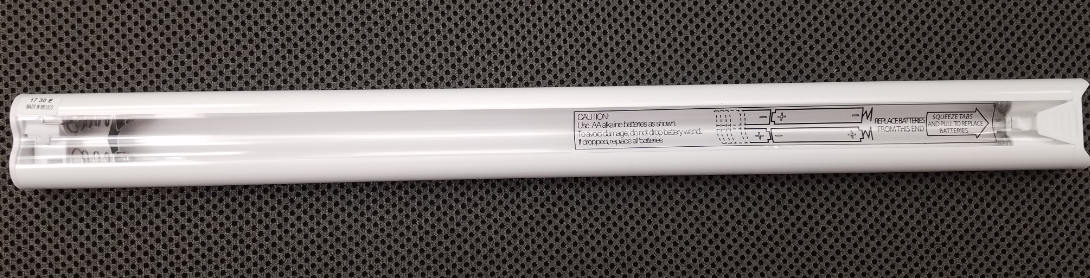

12AA 18V w/ Enhanced End Caps, PCN 7520068000, shown below:

Duette® and Applause®

Before May 2003:
- 8AA 12V Single Barrel; PCN 2981097000 (requires intact bracket assembly).
- 8AAA 12V Double Barrel discontinued.
May 2003–April 2010:
- 8AA 12V Single Barrel; PCN 2981097000 (if bracket assembly is intact).
  - If the bracket assembly is not intact and working, the retrofit should be used. This will require the battery wand to be mounted outside of the shade.
  - Retrofit with the following 12V Battery Pack with Satellite Mount Kit:
    - Extension Cable Options:
      - 15" cable PCN 1026660
      - 4' cable PCN 1026661
      - 10' cable PCN 1026662
      - 20' cable PCN 1026663
    - 12V Battery Pack; PCN 7520069000
    - Battery Pack Mounting Kit Cover; KIT8105 - The dimensions of the satellite battery pack cover is 13 3/4" long, 1 1/2" wide and 1" tall
    - Power Cable; PCN 2920247000
May 2010–present:
- 8AA 12V; Enhanced End Caps PCN 7520069000 (empty) / 7520067000 (preloaded)
- 12AA 18V; Enhanced End Caps PCN 7520068000 (empty) / 7520066000 (preloaded)
  - If only a replacement battery wand clip is needed, part number 2920539000 should be used for a high mount clip and part number 2920540000 for a low mount clip.
  - If only a replacement Battery Pack Mounting Kit cover, KIT2791 should be used.

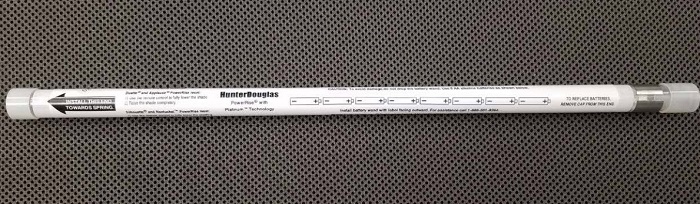

8AA 12V Single Barrel Battery Wand PCN 2981097000, shown below:

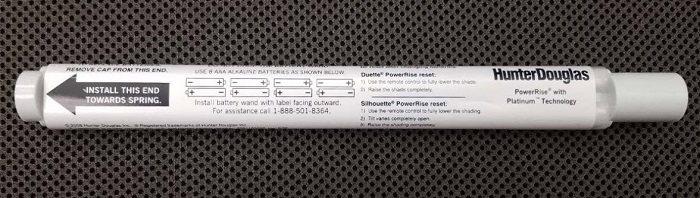

8AAA 12V Double Barrel discontinued, shown below:

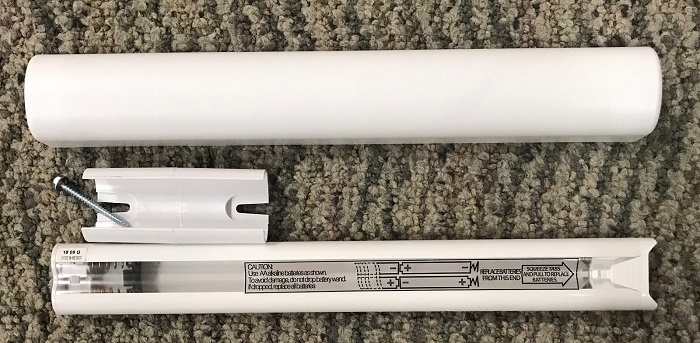

12V Battery Pack with Satellite Mount is shown below with the following: Battery Pack Mounting Kit Cover; KIT8105 (Dimensions of the satellite battery pack cover are 13 3/4" long, 1 1/2" wide, and 1" tall), Battery Wand High Mount Clip; PCN 2920539000, 12V Battery Pack; PCN 7520069000.

12V Battery Pack with Satellite Mount Kit.jpg

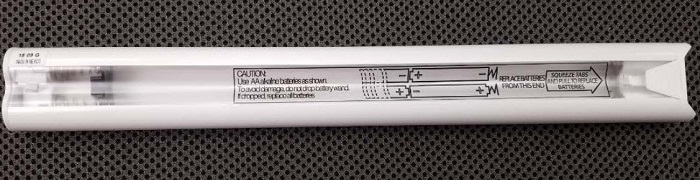

12V Battery Pack Enhanced End Caps PCN 7520069000, shown below:

Duette® Skylight

Duette® Skylight shades with PowerRise® Motorization (2003–2010): 6V Lithium Skylight Wand and 16AA Lithium Skylight Pack PCN 2980922000 are discontinued.

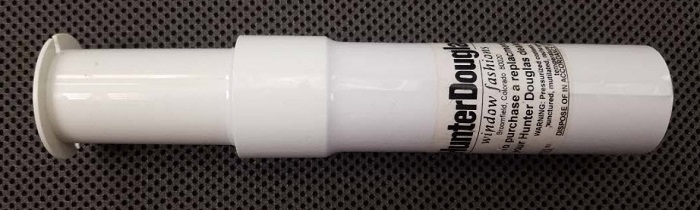

- Old original style, 6V Lithium Skylight Wand discontinued

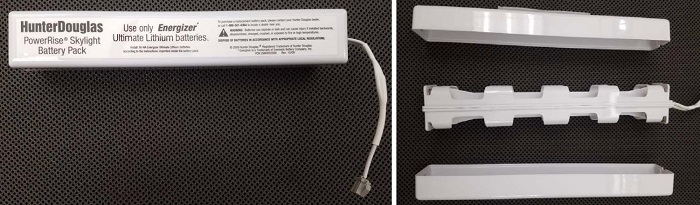

- Old replacement style, 16AA Lithium Skylight Battery Pack discontinued

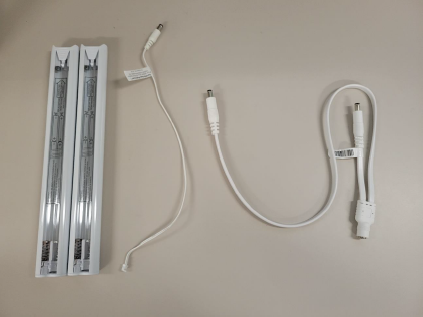

A retrofit is available with the following 12V Battery Pack with Satellite Mount Kit:
- Qty 2 - 12V Battery Packs; PCN 7520069000
- Qty 1 - Double Connector Power Cable PCN 1026990
- Qty 1 - SkyLift Battery Tube Clip PCN 2420020000 (for shades 38” or wider) or Qty 2 - Battery Pack Mounting Kit Cover; KIT8105 (for shades narrower than 38”)
- Qty 1 - Power Cable; PCN 2920247000

Caution: Always use Lithium AA batteries in skylight applications to handle high temperatures. Detailed retrofit steps are outlined in the article: Update Duette® PowerRise® Skylight Battery Wand with Retrofit Components.

Parkland®, EverWood®, Modern Precious Metals®

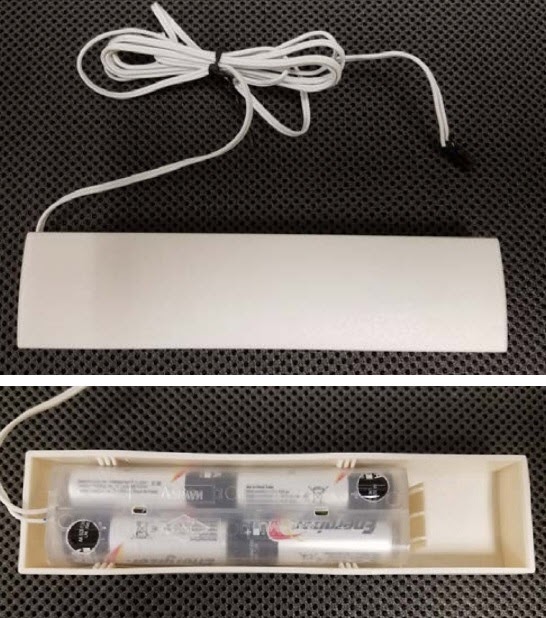

Before January 2007: Early 4AA 6V PowerTilt packs discontinued; no current replacement parts.

4AA 6V PowerTilt Battery Pack.jpg

May 2018–present: 8AA 12V Double Barrel w/ Enhanced End Caps; PCN 7520069000 (empty) / 7520067000 (preloaded).

7520069000 and 7520067000.jpg

Palm Beach™ Shutters

8AA 12V Double Barrel w/ Enhanced End Caps; PCN 7520069000 (empty) / 7520067000 (preloaded).

7520069000 and 7520067000.jpg

Pirouette®

18"–23" widths: 8AA 12V Double Barrel w/ Enhanced End Caps; PCN 7520073000 (empty) / 7520067000 (preloaded).
- Current style
- Old style, discontinued
>23" widths: 12AA 18V; PCN 7520068000 (empty) / 7520066000 (preloaded).

Provenance®

12AA 18V w/ Enhanced End Caps PCN 7520068000 (empty) / 7520066000 (preloaded)
If only a replacement battery wand clip is needed, PCN 2920673000 should be used.
If only a replacement Battery Pack Mounting Kit cover, KIT2791, should be used.

Silhouette®

Before May 2010: Use Silhouette Battery Tube Replacement Kit – KIT9112 (works regardless of original AA/AAA type).

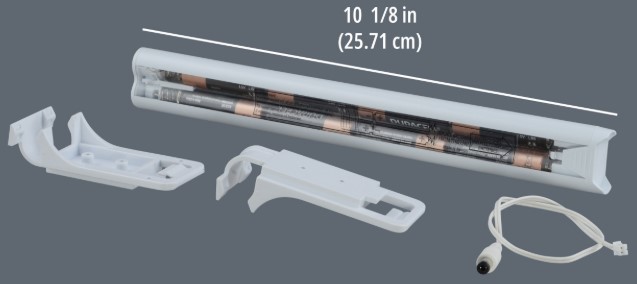

- Current replacement style, Silhouette Battery Tube Replacement Kit, KIT9112
- Old style, 8AA 12V Single Barrel Battery Wand, PCN 2981097000
- Old style, 8AAA 12V Double Barrel Battery Wand, discontinued

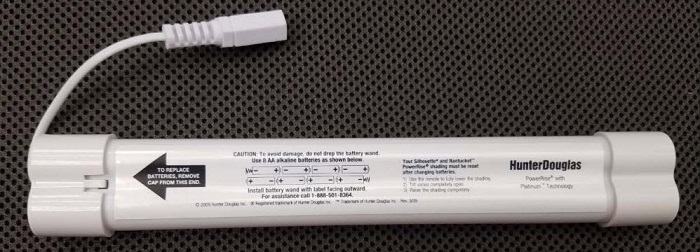

- Old style, 8AAA 12V Double Barrel Battery Wand w/ Wire Attached, discontinued
After May 2010:
- 8AA 12V w/ Enhanced End Caps PCN 7520069000 (empty) / 7520067000 (preloaded)
  - 12V Battery Pack with Satellite Mount is shown below with the following: Battery Pack Mounting Kit Cover; KIT8105 (Dimensions of the satellite battery pack cover are 13 3/4" long, 1 1/2" wide, and 1" tall), Battery Wand High Mount Clip; PCN 2920539000, 12V Battery Pack; PCN 7520069000. Use PCN 2920540000 for a low-mount clip
- 12AA 18V w/ Enhanced End Caps PCN 7520068000 (empty) / 7520066000 (preloaded)
  - If only a replacement battery wand clip is needed, PCN 2920673000 should be used.
  - For a rear-mount battery bracket, use a replacement Battery Pack Mounting Kit cover, KIT2791. This would not replace a satellite mounting kit, but it could be used with certain headrails.

Vignette®

Before May 2010: Replaced with 12AA 18V w/ Enhanced End Caps PCN 7520068000 (empty) / 7520066000 (preloaded), plus power cable PCN 2920247000.

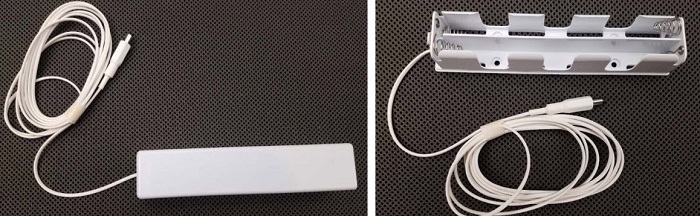

- The existing wand may look like this:
- The new replacement wand is 12AA 18V w/ Enhanced End Caps PCN 7520068000
- Old style, 2AA 18V Double Barrel Battery Wand, discontinued
After May 2010:
- If the shade takes 8 AA batteries, part number 7520069000 should be used. The end caps on this wand have been enhanced since May of 2018 for easier removal to change the batteries, so this wand may look slightly different than an older model but will work the same way.
- 8AA 12V w/ Enhanced End Caps PCN 7520069000 (empty) / 7520067000 (preloaded)
  - 12V Battery Pack with Satellite Mount is shown below with the following: Battery Pack Mounting Kit Cover; KIT8105 (Dimensions of the satellite battery pack cover are 13 3/4" long, 1 1/2" wide, and 1" tall), Battery Wand High Mount Clip; PCN 2920539000, 12V Battery Pack; PCN 7520069000. Use PCN 2920540000 for a low-mount clip
- 12AA 18V; Enhanced End Caps PCN 7520068000 (empty) / 7520066000 (preloaded)
  - If only a replacement battery wand clip is needed, PCN 2920539000 should be used for a high-mount clip and PCN 2920540000 for a low-mount clip.
  - If only a replacement Battery Pack Mounting Kit cover, KIT2791, should be used.

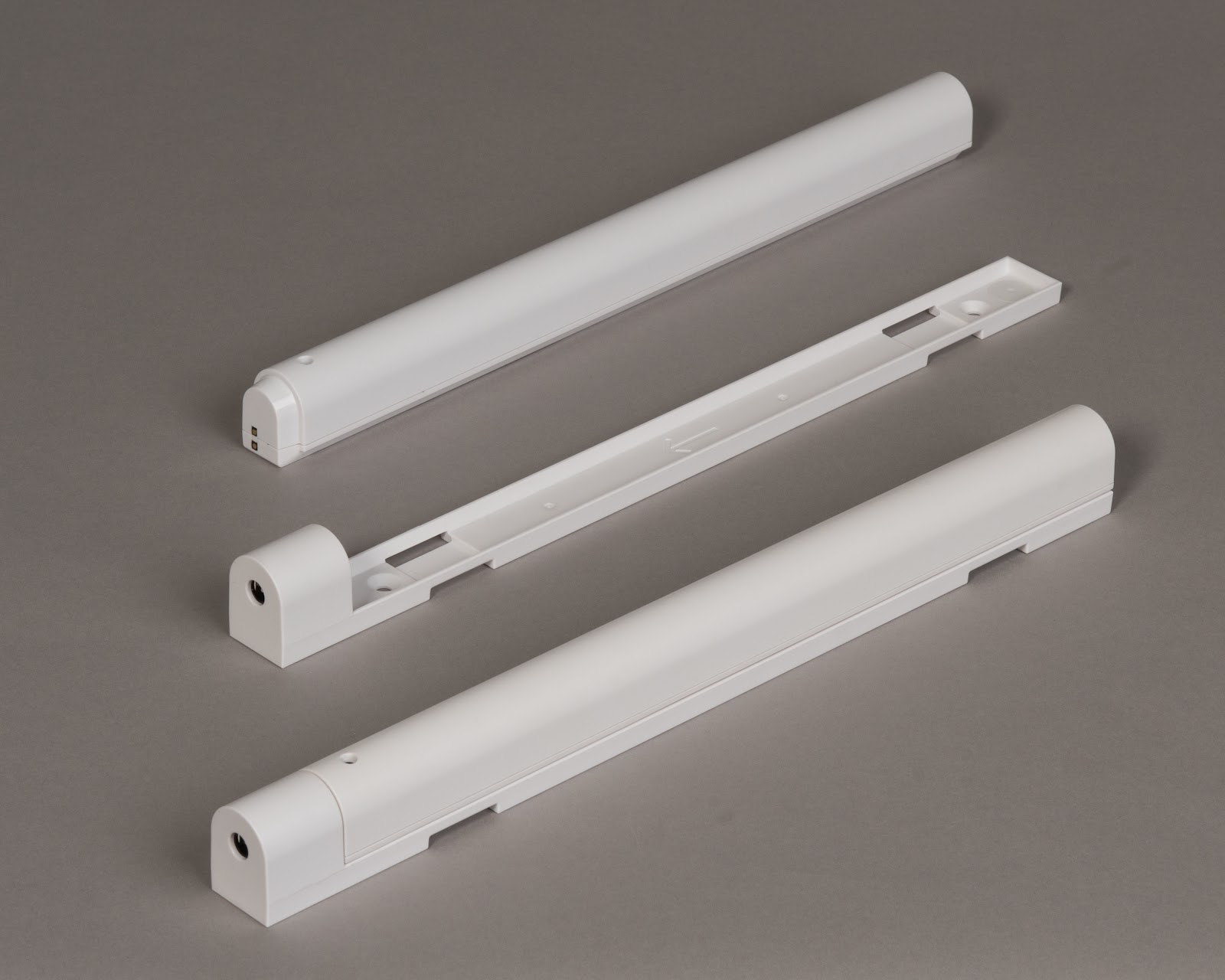

Rechargeable Battery Options

Launch: July 7, 2020, for PowerView® Automation.
Mounting: Headrail or satellite. Retrofit kits are satellite-mount and available with no cable or 15" / 4' / 10' / 20' extension options.
- NO Extension Cable PCN 1020151
- 15" Extension Cable PCN 1020152
- 4' Extension Cable PCN 1020153
- 10' Extension Cable PCN 1020154
- 20' Extension Cable PCN 1020155
Charging: Dual Charging Station (two wands ≈ three hours) or Single Charger (one wand ≈ two hours).

Important: Use Hunter Douglas chargers only. A charger is not included by default and must be selected at the time of order.

Rechargeable Battery Wands.jpg

Satellite Battery Packs

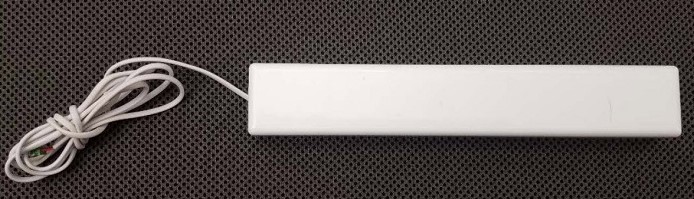

(2003-April 2010) 12V Satellite Pack: Discontinued; retrofit option available with the following 12V Battery Pack with Satellite Mount Kit:
- Extension Cable; PCN 2989900000
- 12V Battery Pack; PCN 7520069000
- Battery Pack Mounting Kit Cover; KIT8105 - The dimensions of the satellite battery pack cover is 13 3/4" long, 1 1/2" wide and 1" tall
- Battery Wand High Mount Clip; PCN 2920539000
- Battery Wand Low Mount Clip; PCN 2920540000
- Power Cable; PCN 2920247000

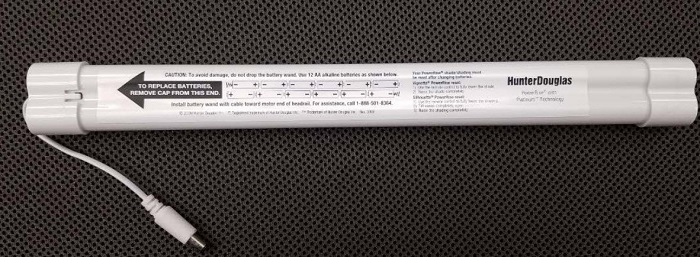

Horizontals (2007–April 2010): Replaced by 8AA 12V Double Barrel w/ Enhanced End Caps PCN 7520069000 (empty) / 7520067000 (preloaded) plus power cable PCN 2920247000.
- Current style
- Old style, discontinued
18V Satellite Pack (May 2010–July 2015): Discontinued; replaced by 12AA 18V w/ Enhanced End Caps PCN 7520068000 (empty) / 7520066000 (preloaded). This part must be sent with the Satellite Battery Pack Mounting KIT2791, along with a power cable: 15-inch PCN 2989899000, 4-feet PCN 2989900000, 10-feet PCN 2989901000, or 20-feet PCN 2989902000.
- Current style
- Old style, discontinued

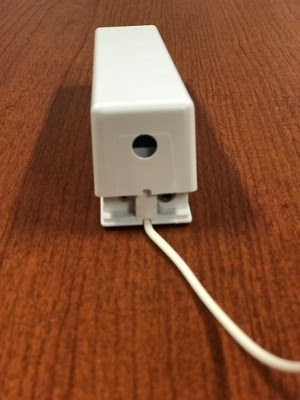

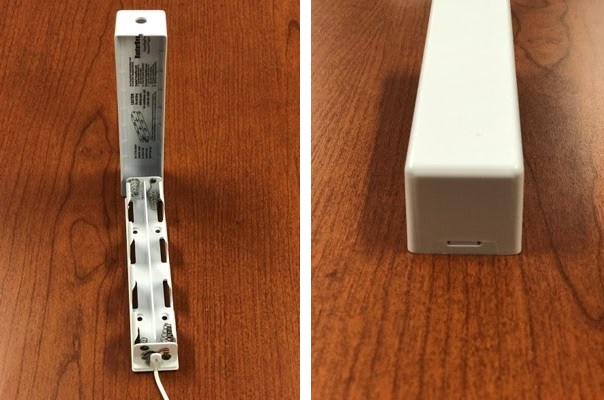

  - If you come across this old style during identification, it can be opened using the following steps.

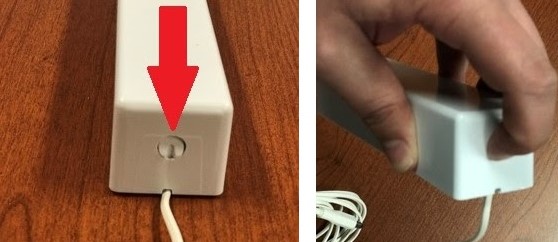

    1. Press the button near the wire.
    2. While holding the button, lift the top section of the satellite battery pack.
    3. The top cover will rotate off the bottom section. Note the tab located on the reverse side.

End Cap Styles and Identification

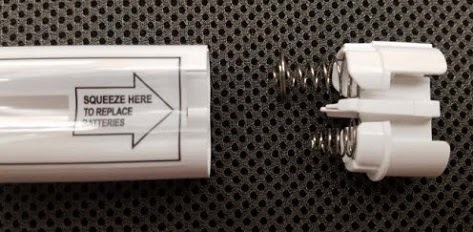

Pre-May 2018: Original end-cap design across several AA/AAA formats.

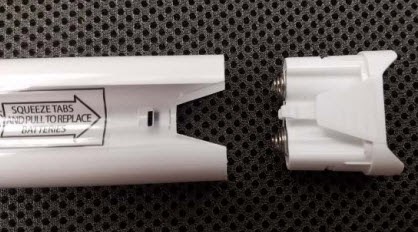

May 2018–Current: Enhanced end caps for easier battery changes; tubes may look different, but remain functionally compatible with the specified products and PCNs.

Tip: When verifying in the field, the end-cap style + PCN label is the quickest way to confirm the correct wand generation.
