Replace Motor for Skyline® Gliding Window Panels with PowerView® Gen 3

Summary:
Learn how to remove and replace the motor in Skyline® Gliding Window Panels with PowerView® Gen 3 Automation. This article includes physical motor replacement steps, receiver installation, and app configuration.

Applies To:
Skyline®, PowerView® Gen 3 (after Spring 2022)

Preparation

1. Important Notes Before You Begin

Physical Motor Replacement

2. Remove the Panel and Motor
3. Install the New Motor, Receiver, and Cover
4. Mount the Receiver
5. Connect the DC Power Supply
6. Set Travel Limits

Finish Setup in the App

7. Configure the Motor in the App

Important Notes Before You Begin

• Motor PCN 1015930 is used for both left-hand and right-hand stack configurations.

• Do not delete the shade from the app or factory reset it before motor replacement.

• After the physical motor is replaced, you must also configure it in the PowerView® App.

Remove the Panel and Motor

1. Unplug the power from the wall

2. Remove the panel in front of the motor

3. Disconnect the bottom weights

   • Grasp the first two panels

   • Rotate the panel being removed to release the snap side

   • Disconnect the bottom weights

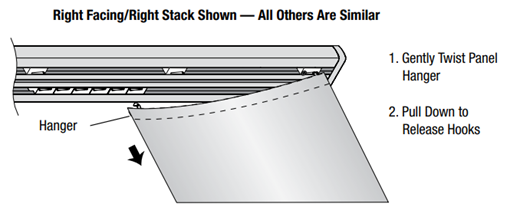

4. Remove the panel hanger

   • Grasp the hanger on both sides

   • Gently twist and pull down to release it from the carriers

   • Store the panel on a flat, clean surface



5. Unplug the barrel connector from the motor



6. Remove the motor cover by pulling it straight down

7. Unplug the receiver cable from the motor



8. Remove the receiver from wherever it’s mounted

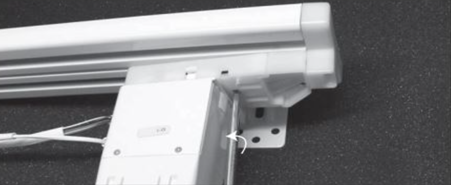

9. Release the motor assembly

   • Insert a screwdriver into the slot on the underside of the drive assembly

   • Twist about ¼ turn to release the spring latch

   • Pull down gently to remove the motor assembly

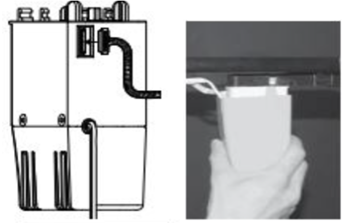

Install the New Motor, Receiver, and Cover

1. Plug the new 10-pin receiver connector into the new PowerView motor

   • The connector only inserts one way—do not force it

2. Route the power and receiver cables through the strain relief

3. Slide the cover over the motor, guiding the cables into the side slot

4. Continue sliding until the cover snaps into place

   • Caution: Ensure the cables are not pinched

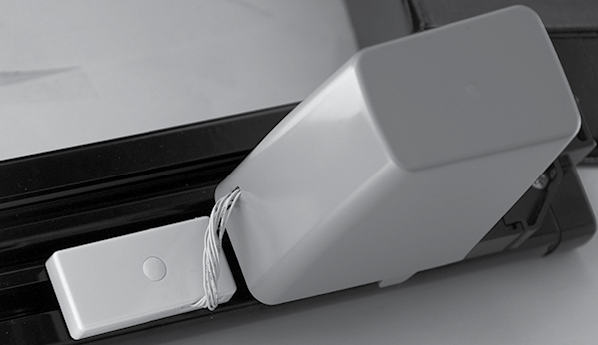

Mount the Receiver

1. Peel off the backing from the receiver’s double-sided tape

2. Mount the receiver next to the motor on the headrail

3. Ensure no wires are pinched between the receiver, bracket, or headrail

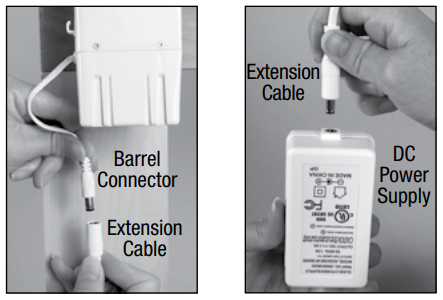

Connect the DC Power Supply

1. Make sure the receiver is connected before applying power

2. Plug the motor’s barrel connector into the extension cable

3. Plug the other end of the extension cable into the DC power supply



Set Travel Limits

Use the receiver’s button to fully traverse the track open and closed. This step sets the end limits for the motor’s movement.

Configure the Motor in the App

Once the physical installation is complete, you’ll need to finish setup in the PowerView App.

1. Open the app and go to the Home containing the replaced shade

2. Select the shade and begin the motor replacement process

3. Follow the guided steps to select the shade type, calibrate the motor, and restore the Room and Scenes

Need help with the app-based replacement?
See this article for how to configure and calibrate the motor using the PowerView App: Replace a Shade or Motor in the PowerView® Gen 3 App
