Summary:
Learn how to replace the batteries in Duette® and Applause® SkyLift™ PowerRise® and Legacy PowerView® (prior to Fall 2022) shades manufactured after April 2013, including when the motor cannot raise the shade.
Applies To:
Duette®, Applause®, SkyLift™, PowerRise®, Legacy PowerView® (prior to Fall 2022)
Replace Batteries
Raise the shade or lift the moving rail slightly.
Remove the cover from the bottom rail.
Unplug the battery wands from the power cable.

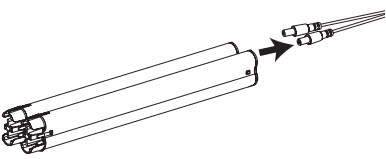

Remove the battery wands.
Open the battery wands and replace the batteries according to the label inside.
Note: Use 16 AA Energizer Ultimate Lithium Batteries.
Reinstall the battery wands in the bottom rail.
Plug the power cable back in.
Reinstall the bottom rail cover.

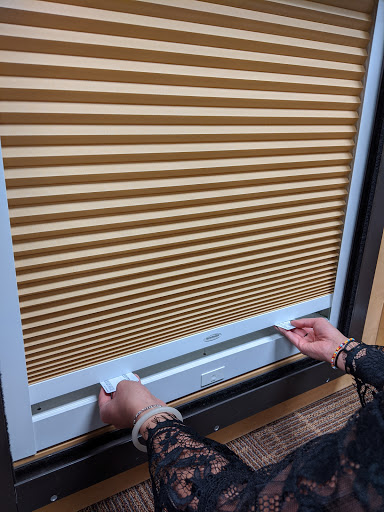

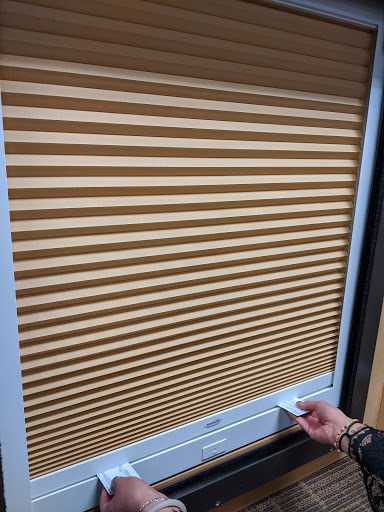

Raise Shade to Access Battery Wand
If the shade’s fabric is down and the motor is not operating, use the following method to access the battery wand:
Locate two straight edges, such as credit cards. Cover them with a cloth to prevent damage.
Insert the straight edges on each side of the shade where the moving rail meets the stationary bottom rail.
Firmly but gently push both ends upward at the same time. Do not move the moving rail more than six inches.
From this position, you can access the stationary bottom rail cover of the battery wand.
