Summary:
Learn how to safely replace a cord connector (also called a cord stop) on eligible horizontal blinds. This part helps manage lift cords and reduce access to inner cords for improved child safety.
Applies To:
Parkland®, Everwood®, Modern Precious Metals®
- Pull the old cord connector apart and untie all cord knots.
- If any washers are present inside the connector, remove them and set aside.
- Trim the ends of all cords at a slight angle. This helps the cords pass more easily through the new connector.
- Thread two of the cords into the top of each half of the new cord connector.
- Tie a double knot in each cord to secure it inside the connector half.
- If your blind includes one or two additional cords:
- Thread a washer onto each extra cord.
- Tie a double knot in each one to hold the washer in place.

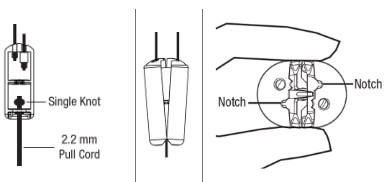

- Thread the pull cord up through the bottom hole of the assembled cord connector.
- Tie a single knot at the end of the pull cord. Then trim all cords so they end about 1/8 inch below their knots.
- Snap the two bottom halves of the connector together, locking the pull cord in place.
- Make sure all cords hang within 3 inches of each other to meet child safety standards.
- Open the top of the connector, insert any remaining cords into the side notches, and snap the top closed.
Caution: Always ensure the cord connector is fully closed and balanced. Misaligned cords can compromise the blind’s performance or safety.
