Summary:
If your PowerRise® 1.0 battery wand is no longer functioning, use this guide to retrofit a new external battery wand so your Duette® and Applause® shade can operate properly again.
Applies To:
Duette®, Applause®, PowerRise®

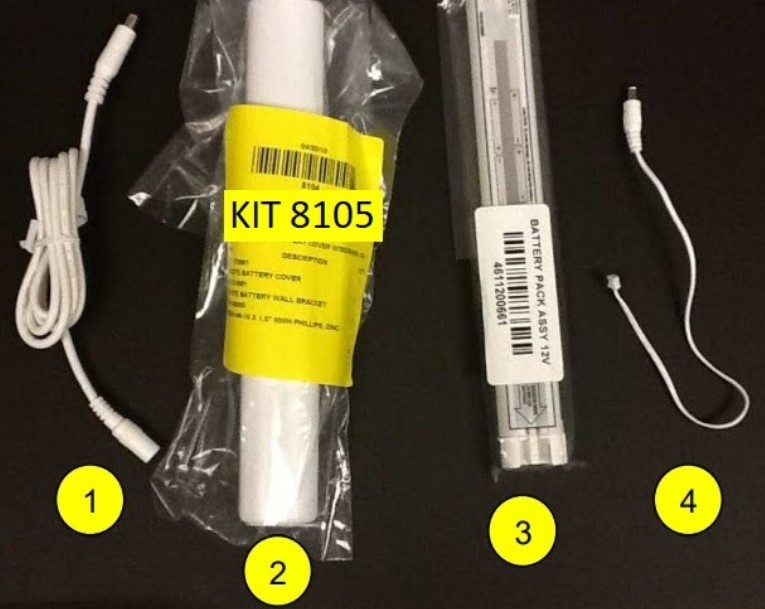

Required Components
You can order all components online at parts.hunterdouglas.com using the part numbers shown below.
- Extension Cable – #1026661
- Satellite Mount Kit – #KIT8105
- 12V Battery Pack – #7520069000
- Power Cable – #2920247000
Install Battery Wand
-

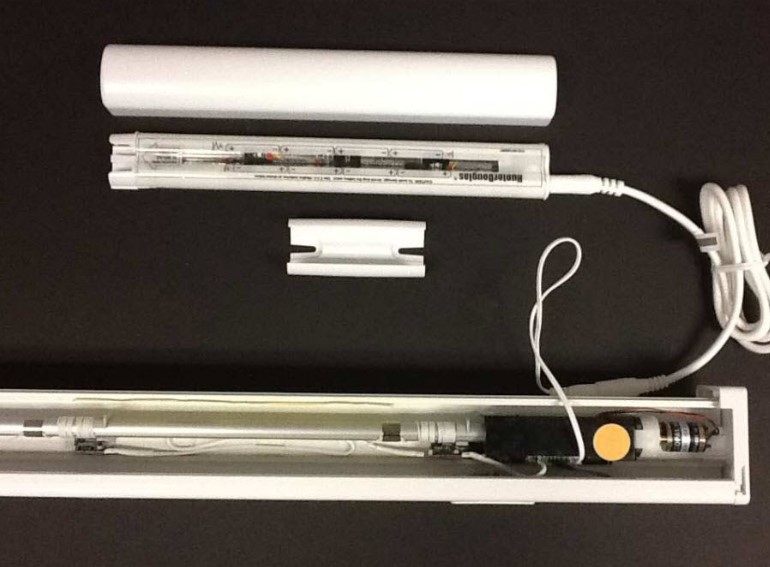

Install the batteries into the battery wand. Be careful to place the batteries in the correct direction, as displayed on the battery wand.
- Mount the external battery mounting clip.

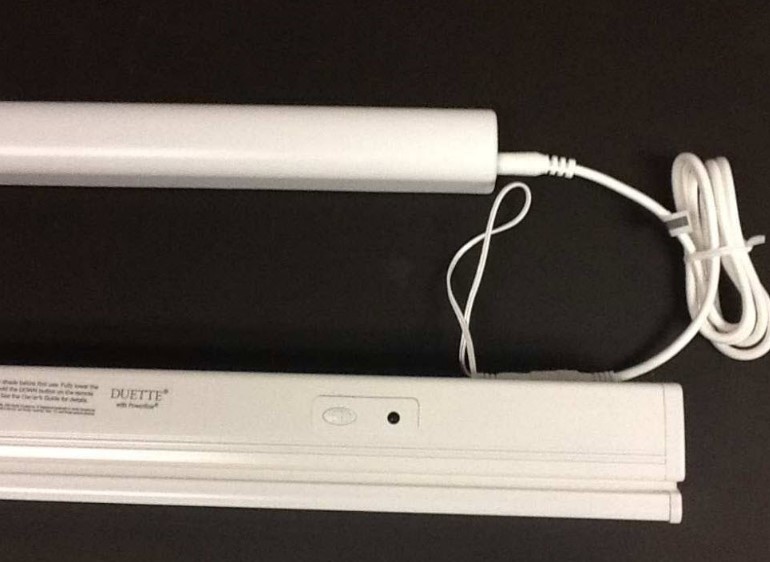

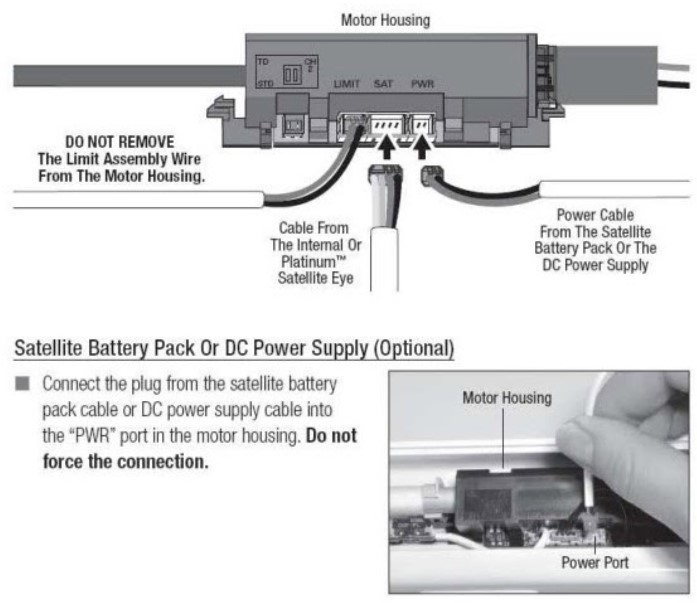

- Connect the power cable to the motor and battery pack.
-
Snap the battery pack into the mounting clip.
- Install the battery cover.
