Summary: Learn how to convert your Hunter Douglas horizontal blind to use updated EPIC™ tape roll components. This repair helps if your blind feels stuck, lifts unevenly, or no longer raises smoothly. The instructions apply to blinds with bead-type or slot-type tape roll systems—check for a metal grommet or cord slot inside the headrail to confirm. Converting to EPIC™ ensures better lift performance and long-term reliability.
Applies To: Parkland®, Everwood®, Modern Precious Metals®
Conversion Steps
1. Prepare the Blind
2. Remove the Existing Tape Rolls and Supports
3. Install the EPIC™ Tape Roll Supports
4. Thread the Lift Cords
5. Add the New EPIC™ Tape Rolls
6. Reassemble the Shade
Note: If your shade already uses decorative tapes and you are only replacing worn components, see: Replace Decorative Tape Roll.
Prepare the Blind
- Stack the blind under the headrail by pulling the lift cords.
- Remove the valance (if installed).
- Remove the blind from the mounting brackets.
- Tap out the thin metal end lock using a flathead screwdriver and hammer.
- Pull the tilt rod out of the headrail and set it aside.
Remove the Existing Tape Rolls and Supports
For Bead-Type Rolls:

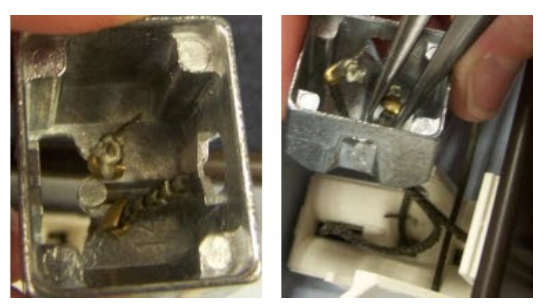

- Turn the tape roll upside down to locate the crimped grommet.
- Use needle nose pliers to pull the cord out of the narrow slot.
- Repeat for all tape rolls.
For Slot-Type Rolls:
- Pull the cord and grommet out of the channel by hand.
- Repeat for all tape rolls.
Then:
- Separate the breakaway tassel to detach the lift cord. Save all parts.

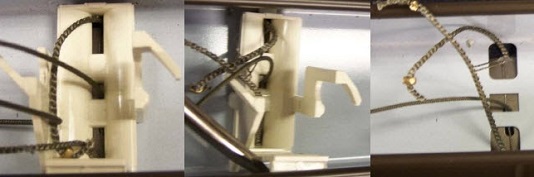

- Pull the lift cord down through the old tape roll support.
- Use a flathead screwdriver or flex the headrail to remove the old support.
- Repeat for each support.
Install the EPIC™ Tape Roll Supports

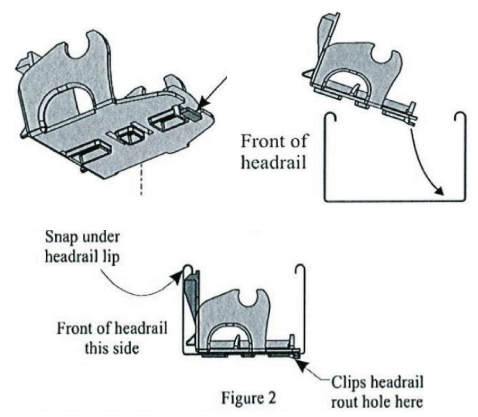

- Angle the support toward the rear of the headrail.
- Slide the small tab under the headrail lip.
- Press down to snap it into place.
- Repeat for all tape roll positions.
Thread the Lift Cords

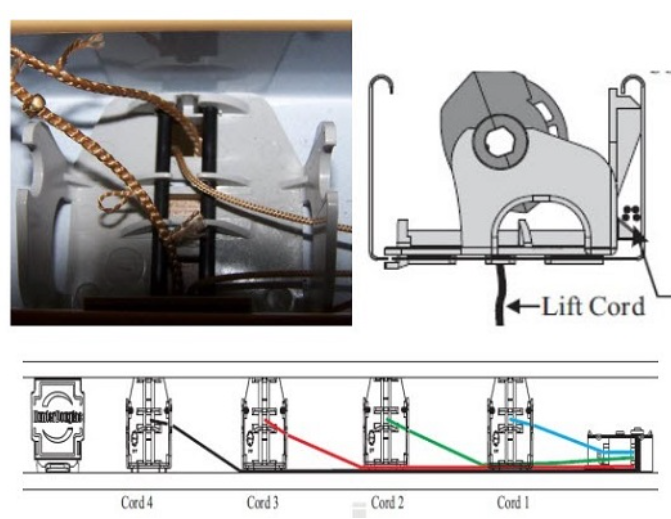

- Pull the lift cord down through each new EPIC™ support.
- Route the cord properly using your shade’s configuration.
- Reattach the breakaway tassels.
Add the New EPIC™ Tape Rolls

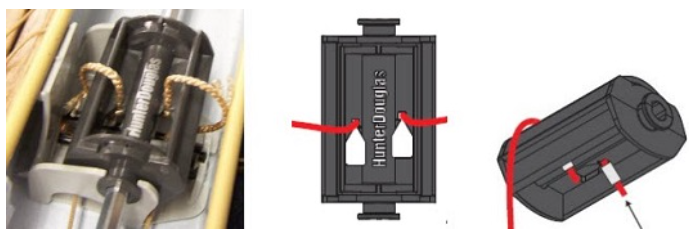

- Insert one pin into the end of the EPIC™ tape roll.
- Push the lift tape through the route hole.
- Squeeze and insert the second pin on the opposite side.

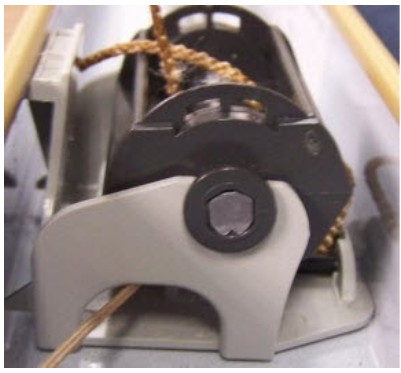

- Snap the tape roll into the support.
- Repeat for all rolls.
Reassemble the Shade
- Slide the tilt rod back through the new tape rolls.
- Align the V-notch in the rod with the notch inside each roll.
- Replace the metal end cap.
- Reinstall the blind in the mounting brackets.
