Operate and Program PowerRise® Remote

Identify and Operate

1. Identify Your Shade Type
2. How to Operate the Remote

Programming the Remote

3. Shades Manufactured Before 2007
4. Shades Manufactured 2007–2010
5. Shades Manufactured After 2010 – Method A
6. Shades Manufactured After 2010 – Method B

Removing a Shade from the Remote

7. Shades Manufactured 2007–2010
8. Shades Manufactured After 2010 – Method A
9. Shades Manufactured After 2010 – Method B

Support

10. Troubleshooting

Identify Your Shade Type

The steps below depend on when your shade was manufactured. Look for a manufacturing label on the headrail or back of the shade.

Note: If you can’t find the date, try the 2007–2010 method first.

How to Operate the Remote

Infrared (IR) Shades

• Point the remote directly at the shade from a short distance.
• IR uses line-of-sight, so multiple shades may move at once.
• To control a single shade, stand close and aim directly at the sensor.

Radio Frequency (RF) Shades

• RF allows assigning specific shades to group buttons (1–4).
• No line-of-sight is required, but shades must be programmed to a group.

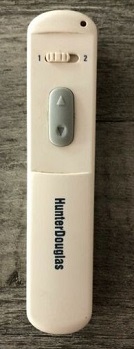

Shades Manufactured Before 2007

(IR only — no programming required)

• Point the remote at the shade to operate it.
• All nearby IR-compatible shades will respond.
• To isolate one shade, stand very close to it while operating the remote.

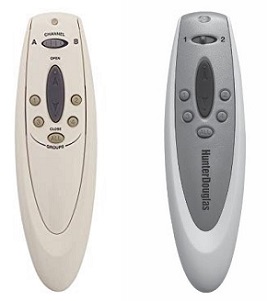

Shades Manufactured 2007–2010

IR Operation:

• Point the remote at the shade. No programming required.

RF Operation:

1. Use a pin or paperclip to quickly press and release the SETUP button on the back of the remote.
   • Note: Do not hold it down. The LED will flash green for approximately 30 seconds.
2. Hold the remote near the shade’s satellite eye or manual button.
3. While the LED is flashing:
   • Press the group number (1–4) that you plan to program.
   • Press the up arrow to add the window covering to the group.
   • The shade will jog (move slightly) to confirm programming.

Shades Manufactured After 2010 – Method A

1. Press and hold the manual button on the shade.
2. Press the group number button (1–4) on the remote.
3. Aim the remote at the eye of the shade.
4. Press and release the up arrow.
5. Release the manual button.
6. Test remote control.

Note: If this method doesn’t work, use Method B.

Shades Manufactured After 2010 – Method B

1. Tap the reset button on the back of the remote. The LED will flash green.
2. Hold the remote near the shade’s satellite eye or manual button.
3. While the LED is flashing:
   • Press the group number (1–4).
   • Press the up arrow.
   • The shade will jog to confirm programming.

Remove a Shade from the Remote

Shades Manufactured 2007–2010

1. Use a pin or paper clip to quickly press and release the SETUP button on the back of the remote. The LED will flash green for approximately 30 seconds.
2. Hold the remote near the shade’s eye or manual button.
3. While the LED is flashing:
   • Press the group number (1–4) that you plan to program.
   • Press the down arrow to remove the window covering from the group.
   • The shade will jog to confirm removal.

Shades Manufactured After 2010 – Method A

1. Press and hold the manual button on the shade.
2. Press the group number on the remote.
3. Aim the remote at the eye.
4. Press the down arrow.
5. Release the manual button.
6. Test remote control.

Note: If this method doesn’t work, try Method B.

Shades Manufactured After 2010 – Method B

1. Use a pin or paper clip to quickly press and release the SETUP button on the back of the remote. The LED will flash green for approximately 30 seconds.
2. Hold the remote near the shade’s eye or manual button.
3. While the LED is flashing:
   • Press the group number (1–4) that you plan to program.
   • Press the down arrow to remove the window covering from the group..
   • The shade will jog to confirm removal.

Troubleshooting

• Replace the AAA batteries in the remote if it’s unresponsive.
• Check that the LED at the top of the remote lights up when a button is pressed.
• If the shade still doesn’t respond:
  • Reprogram the remote using the correct steps above.
  • Make sure your shade’s batteries are charged or replaced.
