Summary:
PowerRise® 2.0 and 2.1 shades can be grouped together using radio frequency (RF). Up to four groups are available, letting you open or close multiple shades at once with a single button press on the remote or wall switch.
Applies To:
PowerRise® Platinum™ Technology (2012–2015)
Before You Begin
Only power on the shade you want to program so other shades aren’t accidentally added.
Hold the remote or wall switch within 12 inches of the sensor eye on the shade during setup.
There are four groups (1–4). Hunter Douglas recommends keeping similar window coverings together in the same group.

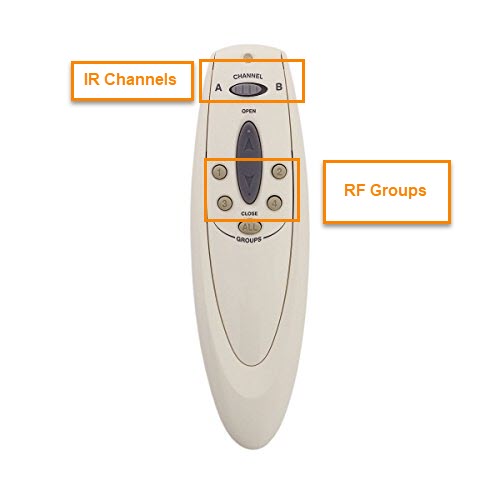

Program With the Remote
With a paper clip, press and release the setup button on the back of the remote. The front indicator light flashes green for ~30 seconds.
While the light is flashing, press the group button (1–4) you want to use.
Point the remote at the sensor eye of the shade.
Press UP to add the shade to that group.
Press DOWN to remove the shade from that group.
The shade will jog once to confirm.
Press and release the setup button again to exit setup mode. The light stops flashing, and the remote saves your change.
Program With the Wireless Wall Switch
Remove the back cover of the wall switch.
With a paper clip, press and release the setup button on the back of the switch. The ALL button flashes green for ~30 seconds.
While the ALL button is flashing, press the desired group button (1–4).
Point the top of the wall switch at the sensor eye of the shade.
Press UP to add the shade to that group.
Press DOWN to remove the shade from that group.
The shade will jog once to confirm.
Press and release the setup button again to exit setup mode. The ALL button stops flashing, and the switch saves your change.
Replace the wall switch in its mounting place.
Everyday Use
To operate, simply press the group button (1–4) and then press UP or DOWN to move all shades in that group together.
Groups let you open or close multiple shades at once instead of controlling each one individually.
