Summary:
Learn how to operate Pirouette® shades using the SoftTouch® wand, including tips for motion control, setting favorite positions, and adjusting upper and lower limits.
Applies To:
Pirouette®, SoftTouch®
Operation
1. Lower or Raise the Shade
2. Use Express Mode
3. Set a Favorite Position
Adjust Upper and Lower Limits
4. Adjust Upper Limit
5. Adjust Vane Open and Closed Limits
Support
Lower or Raise the Shade

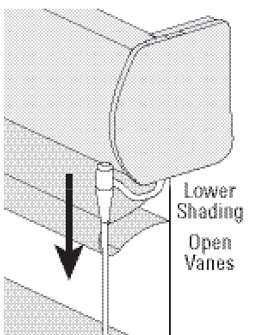

- To lower: Briefly pull the wand down

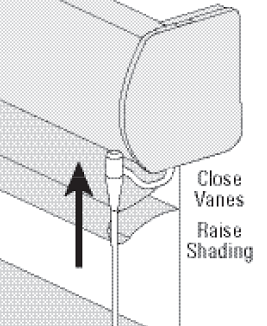

- To raise: Briefly push the wand up
- To open vanes (when shade is fully lowered): Briefly pull the wand down
- To close vanes: Briefly push the wand up
- Pull down or push up the wand during motion, then release to stop movement at any point
Use Express Mode
- Activate Express Mode to bypass transitional movements
- Hold the wand up or down for two seconds
- Shade moves directly to the fully open or closed position
Set a Favorite Position
- Start moving the shade
- When it reaches your preferred position, quickly push the wand up
- Shade will jog and beep to confirm your favorite has been set
Adjust Upper Limit
- Move the shade to the fully open (retracted) position
- Push the wand up and release, then quickly push and hold the wand up
- After 6 seconds, the shade will beep and the red LED behind the arm will blink
- Pull the wand down and release to lower the shade to the new upper limit
- Push and hold the wand up for 6 seconds
- Shade will jog twice and LED will turn off to confirm the new limit
Adjust Vane Open and Closed Limits
- Move the shade to fully lowered with vanes fully open
- Pull the wand down and release, then quickly pull and hold the wand down
- After 6 seconds, shade beeps and LED blinks (programming mode)
Set Vane Open Limit
- Push the wand up to move vanes to desired open position
- Pull and hold the wand down for 6 seconds
- Shade jogs twice and moves to vanes closed position
Set Vane Closed Limit
- Push or pull wand to adjust to desired closed position
- Pull and hold wand down for 6 seconds
- Shade or vanes will jog twice to confirm closed limit
Need More Help?
If you have additional questions, we recommend reaching out to your original dealer or installer for support.
If you’re not sure who installed your window treatments, you can use our Dealer Locator to find a local expert or chat with an agent at help.hunterdouglas.com for further assistance.
