Custom Shade Settings
1. Adjust Shade Limits in the App
2. Adjust Shade Limit Video Walkthrough
3. Advanced Controls and Setup Tips
4. Calibrate Shade Video Walkthrough
Adjust Shade Limits in the App
- Open the PowerView App.

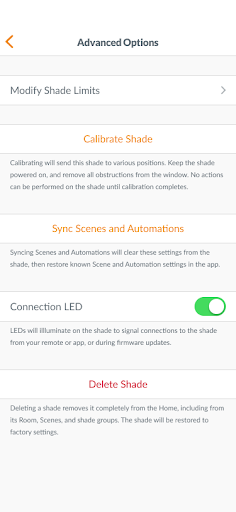

- Navigate to More → Shades → [select shade] → Advanced Options → Modify Shade Limits.
-
Choose the limit you want to adjust. The shade will move to the current limit automatically.
Note: Remove any obstructions before adjusting. Available limits will vary based on shade type.

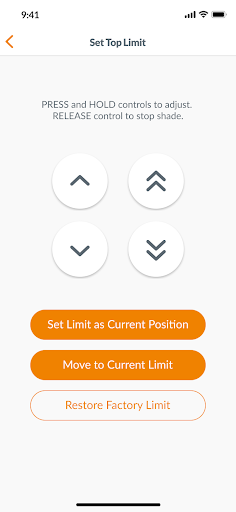

- Use the double arrow for fast movement and the single arrow for fine adjustments.
- Once the shade reaches the preferred position, select Set Limit at Current Position.
- Exit by navigating Back, then tap Done on the Shade Settings screen.
- Test the shade to confirm the new limit is set correctly.
Want a step-by-step walkthrough?
Watch how to adjust shade limits and transition points using the app:
Advanced Controls and Setup Tips
- Customize limits during initial setup to save time. After adding shades and remotes, use the Room Settings page to access each shade. Then select Advanced Options → Modify Shade Limits.
- If limits weren’t set during setup, you can adjust them after transferring the Home. Transferring does not remove access unless the user leaves the Home or is removed by the homeowner.
- To regain temporary access, hold the control button on any shade for five seconds, then select Temporary Access in the app.
Calibrate Shade for Precise Movement
Run a shade calibration to ensure precise operation. In the app, go to More → Shades → [select shade] → Advanced Options → Calibrate Shade. Calibration moves the shade through various positions, typically ending in the most closed position.
Note: Keep the shade powered on and clear of obstructions during calibration.
Need to calibrate your shade? Watch this quick video to learn how:
