Summary:
Learn how to replace cufflinks, tilt bar caps, and bottom plugs on Palm Beach™ Polysatin™ Shutters. This guide includes part references by product era and helps identify which repairs can be completed in the home.
Requirements:
Palm Beach™
Repairs
1. Replace Cufflinks
2. Tilt Bar Connector and Cufflink Reference
3. Replace Bottom Plug
4. Replace Tilt Bar Cap
Support
5. Repair Service Eligibility
6. Need More Help?
Replace Cufflinks
If your louvers no longer tilt together or the tilt bar feels disconnected, the plastic cufflink connector may be broken and need replacement.
- Locate the damaged cufflink connector.
- Grasp the exposed end and pull it straight out of the tilt bar.
- Insert the long side of the “T” of the new connector into the shutter stile.
- Twist the connector 90 degrees to lock it in place.

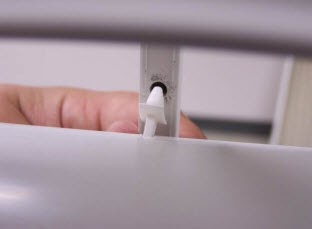

- From the back of the panel, align the cufflink with the proper tilt bar hole.

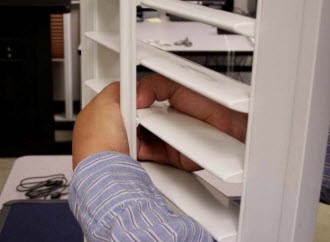

- Press the cufflink into the tilt bar until it clicks securely.
Caution: Cufflink connectors are made from rigid plastic. Use care during installation to avoid cracking.
Tilt Bar Connector and Cufflink Reference
Use the manufacturing date and tilt bar style to identify the correct replacement part for your Palm Beach™ shutter. If you're working with a legacy product such as By-the-Ways, Summerwind, or Vinylbilt, see the related section at the end of this list.
Need to order a tilt bar connector or cufflink? Use the part number (#) at parts.hunterdouglas.com.

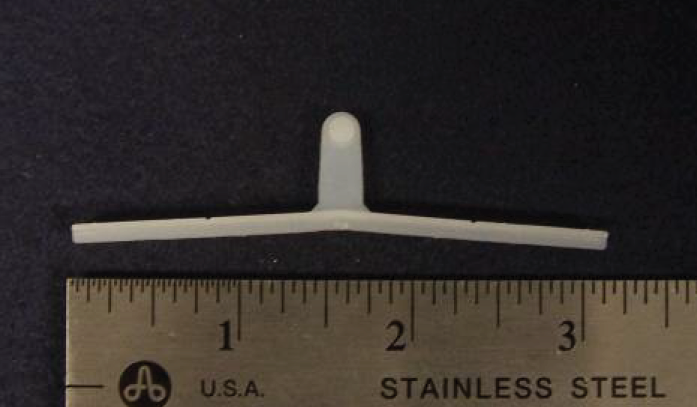

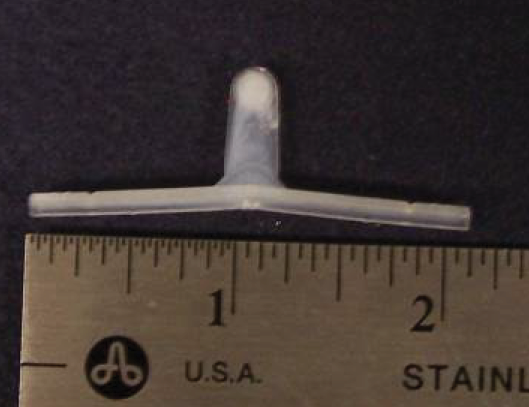

1991 to 1996 – Tilt Bar Connectors
-

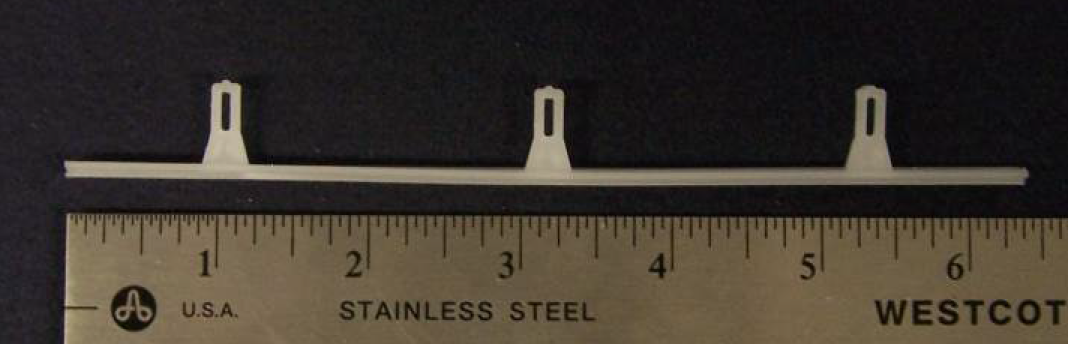

2 ½″ louvers: #M506
-

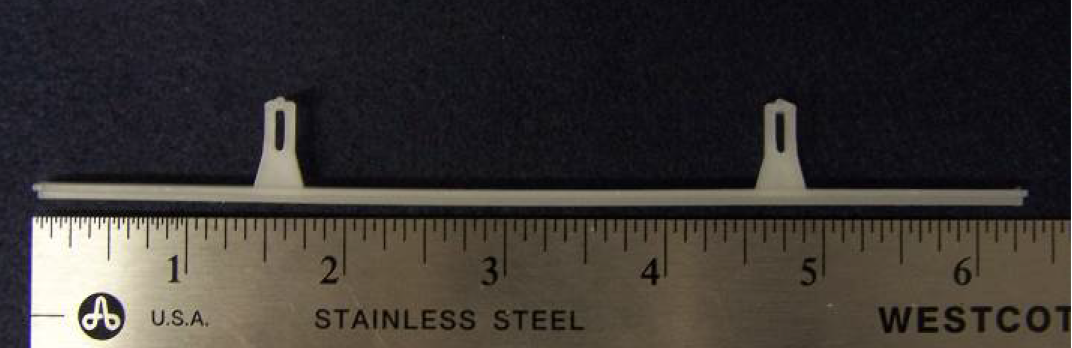

3 ½″ louvers: #M507
1996 to October 2009 – Cufflink
-

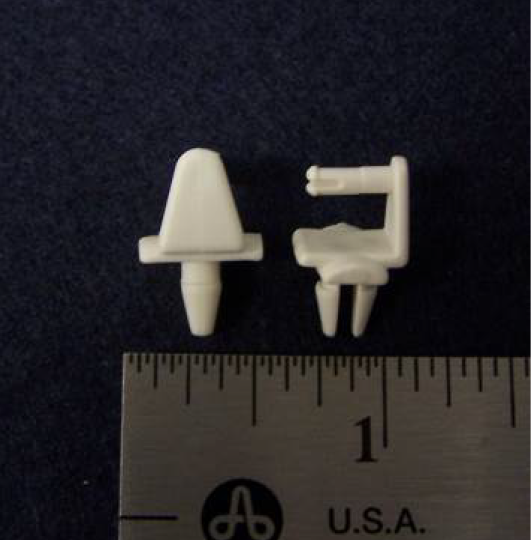

Side tilt bar cufflink:
- Off White: #RCF100-169
- White Silk: #RCF100-051
- White: #RCF100-137
-

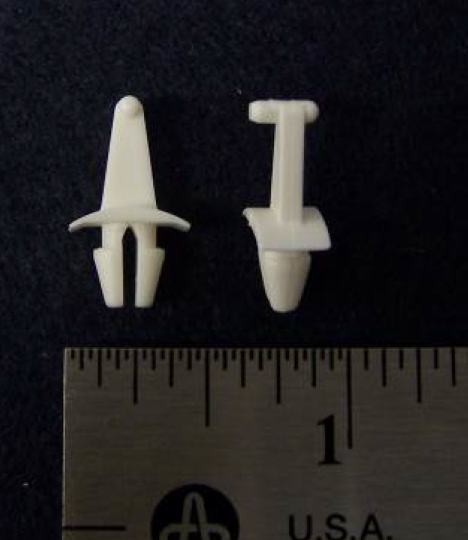

Center tilt bar cufflink:
- White Silk: #BCUFF1-051
November 2009 to Present – Cufflink
-
Front tilt bar cufflink:
- White: #M556-137
- White Silk: #M556-151
- Bright White: #M556-136
-

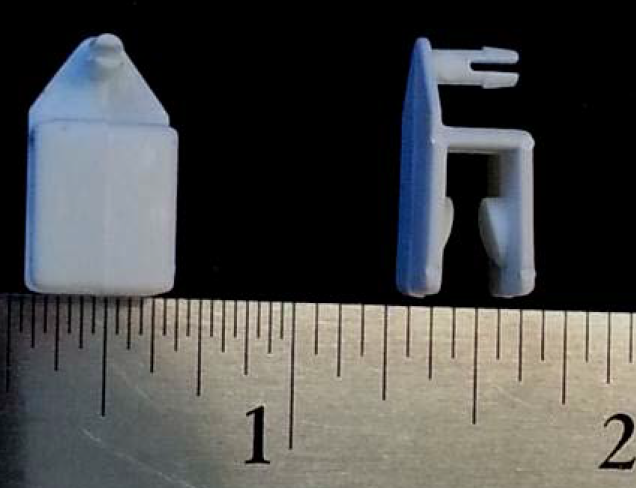

Rear tilt bar cufflink:
- White: #M546-137
- White Silk: #M546-151
- Bright White: #M546-136
- Linen: #M546-138
ClearView Rear Tilt Bar Connectors (Pre-August 2007)
If your shutter has ClearView Rear Tilt and was manufactured before August 2007, all connectors must be replaced:
-
2 ½″ louvers:

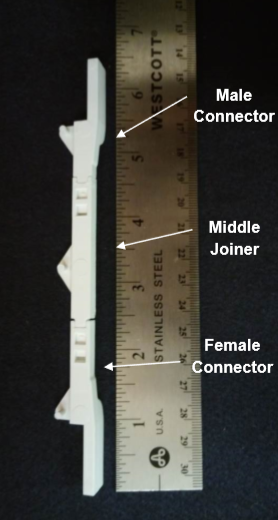

- Male: Bright White: #M414-136 or White Silk #M414-151
- Middle: Bright White: #M412-136 or White Silk #M412-151
- Female: Bright White: #M413-136 or White Silk #M413-151
-
3 ½″ louvers:
- Male: Bright White: #M420-136 or White Silk #M420-151
- Middle: Bright White: #M418-136 or White Silk #M418-151
- Female: Bright White: #M419-136 or Almond #M419-140
-
4 ½″ louvers:

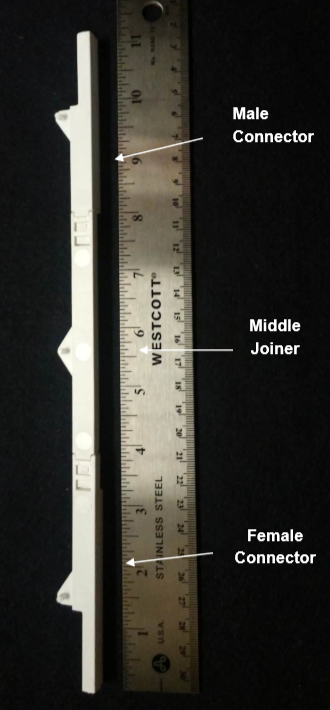

- Male: Bright White: #M434-136
- Middle: Bright White: #M432-136
- Female: Bright White: #M433-136
Related Products: By-the-Ways, Summerwind & Vinylbilt (Pre-June 2008)
If you are working with a legacy shutter originally sold as By-the-Ways, Summerwind, or Vinylbilt, and it was manufactured before June 2008, use the following tilt bar connectors based on louver size:
-
2 ½″ louvers: #M540
-
3 ½″ louvers: #M541
-

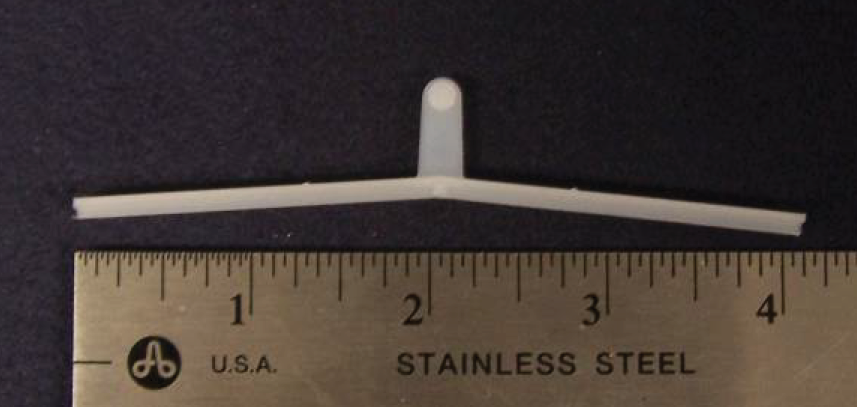

4 ½″ louvers: #M542
Note: These products were rebranded to Summerwind in June 2008 and are not considered part of the Palm Beach™ product line.
Replace Bottom Plug
If the small circular plug at the bottom of the shutter panel is missing or loose, you can install a replacement to keep the frame clean and maintain a finished look.
Confirm the panel uses a V-groove bottom plug style.
Align the new plug with the opening at the bottom of the panel stile.
Press the plug firmly into place until it sits flush with the surface.

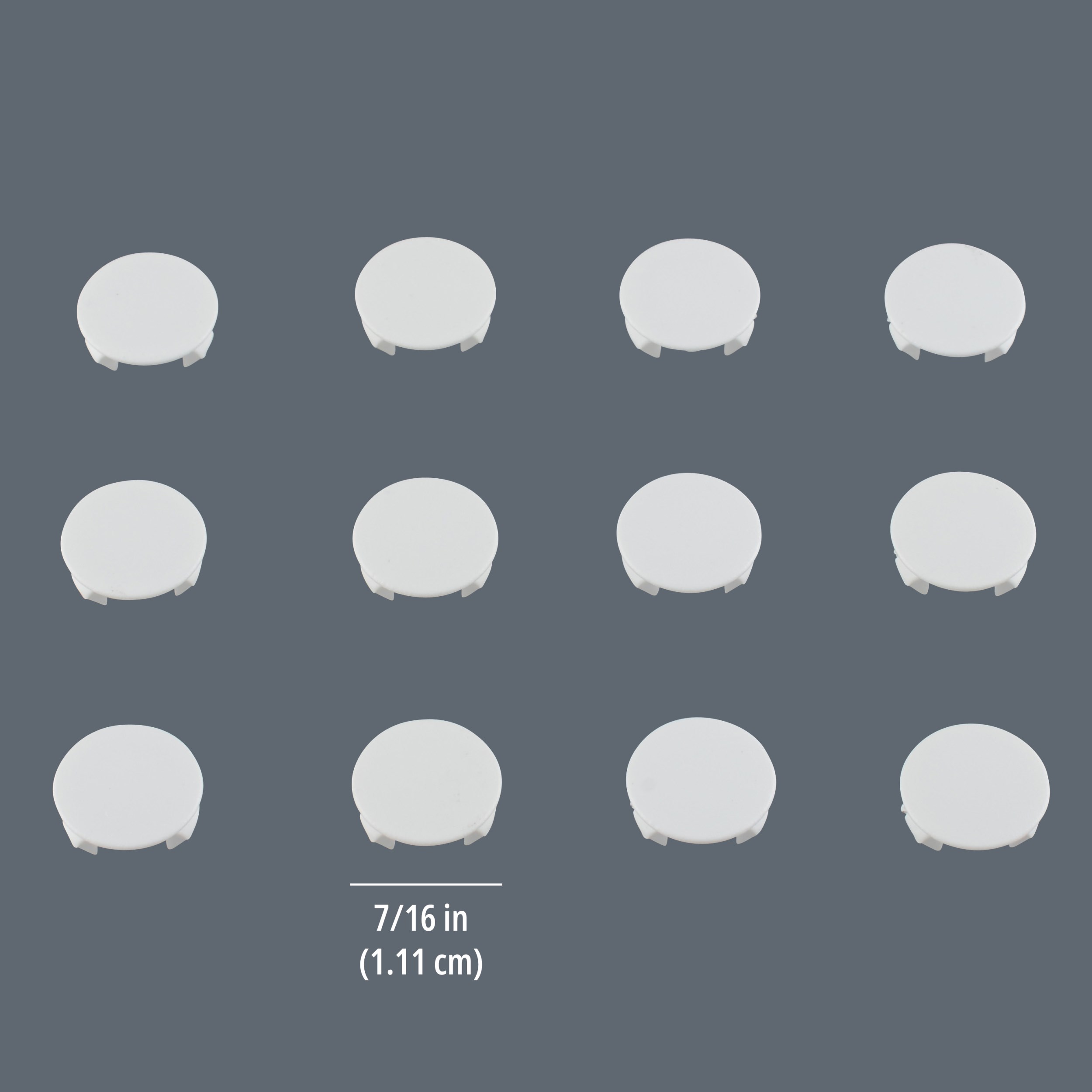

Need to order a replacement? Use #KIT4588 at parts.hunterdouglas.com.
Replace Tilt Bar Cap
If the small cap at the end of the tilt bar is missing or damaged, you can easily install a replacement to maintain a clean appearance and protect the tilt bar opening.
Confirm your shutter uses a Palm Beach™ tilt bar cap.
Align the new cap with the open end of the tilt bar.
Press the cap into place until it fits snugly and sits flush with the surface.
Part numbers by design and era:
1996-October 2009
White: #M402-136

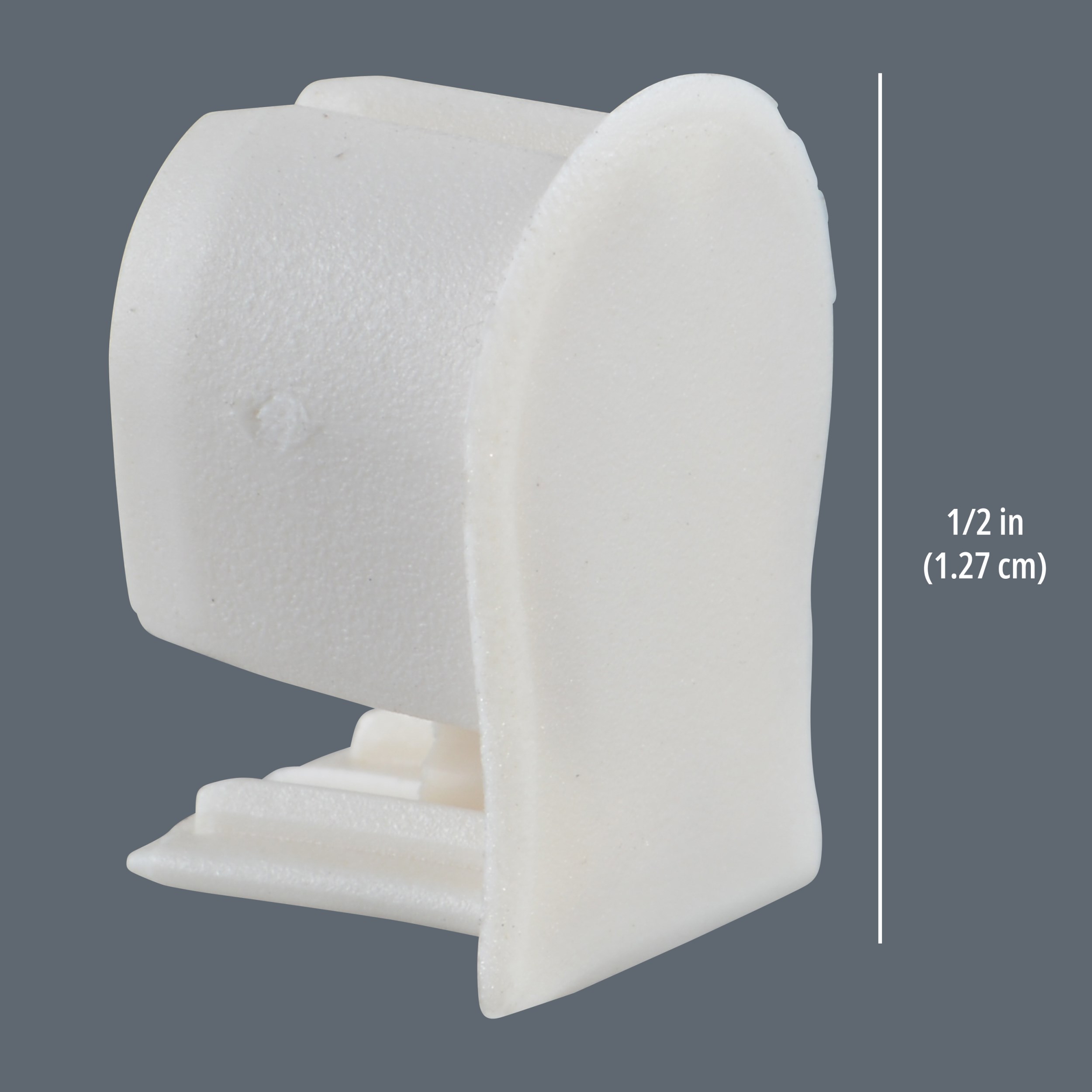

Off White: #M402-151

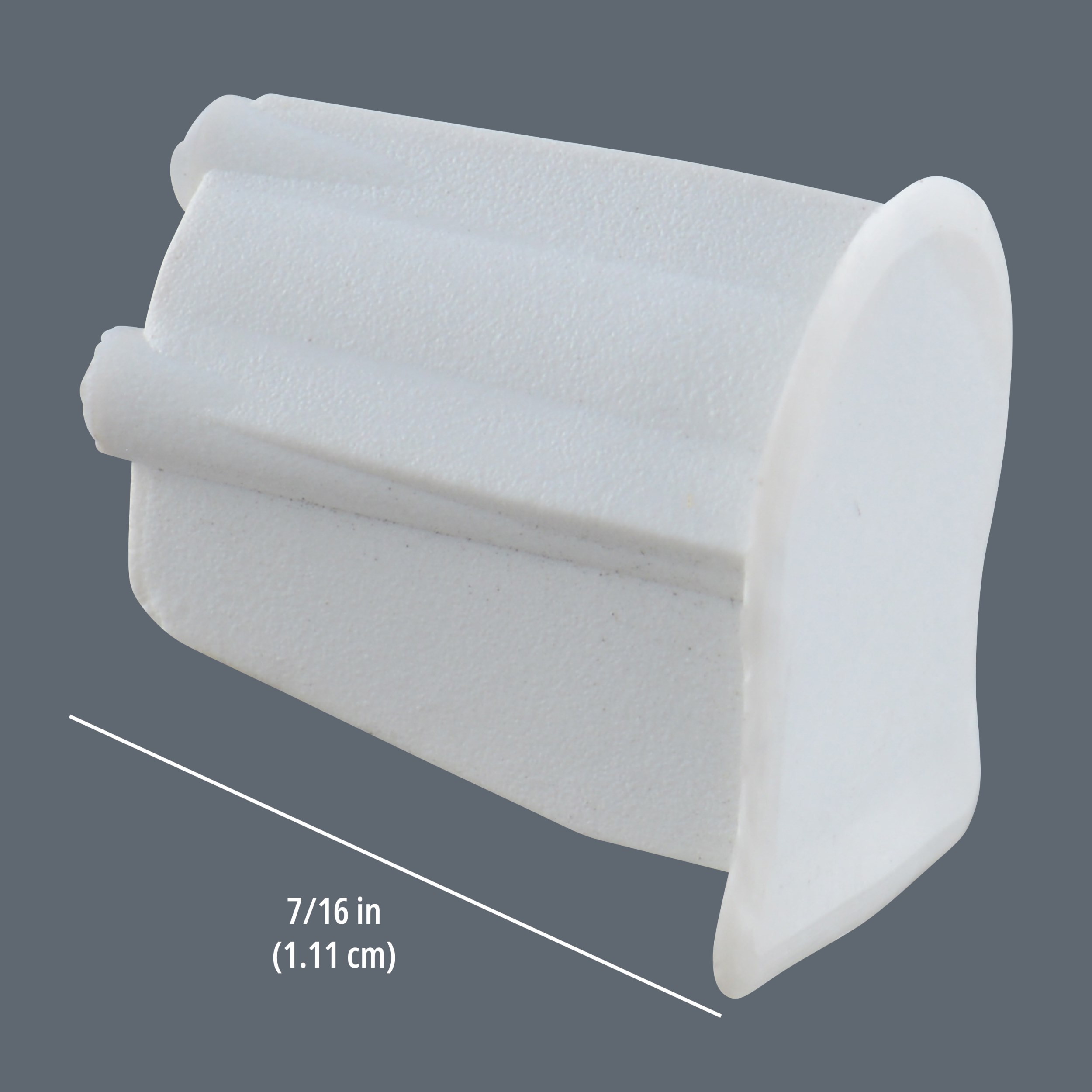

1996 to October 2009
White: #M498-137
November 2009 to Present

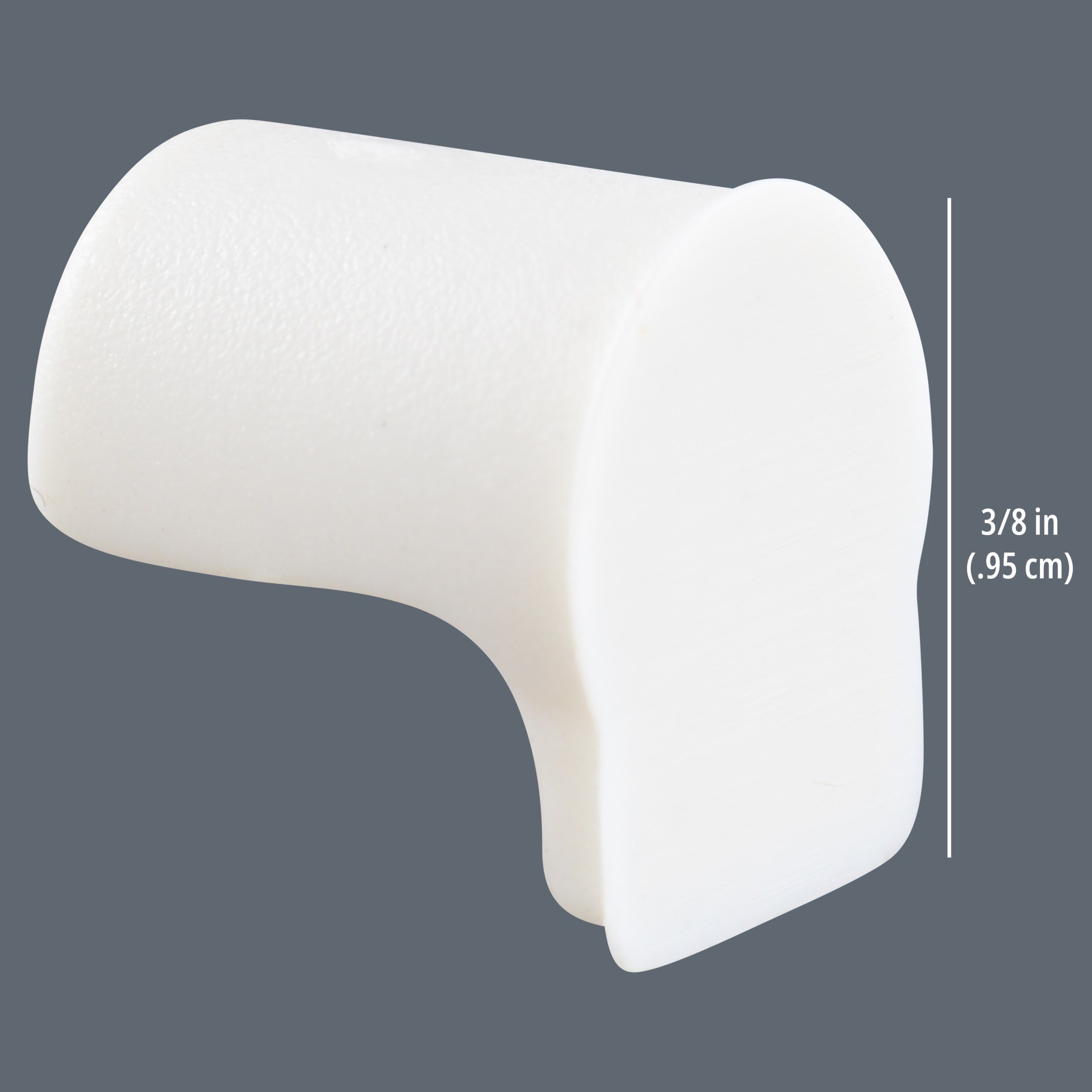

- White Silk: #RCAP2-051
Need to order a replacement? Use the part number at parts.hunterdouglas.com.
Repair Service Eligibility
The repair steps shown in this article, such as replacing cufflinks or end caps, can typically be completed in the home.
Other repairs, such as panel realignment or louver replacement, should be performed by a professional to avoid damage to the product.
Need More Help?
If you have additional questions, we recommend reaching out to your original dealer or installer for support.
If you’re not sure who installed your window treatments, you can use our Dealer Locator to find a local expert or chat with an agent at help.hunterdouglas.com for further assistance.
