Adjust the Upper and Lower Limit for Duette® or Vignette® Hard-Wire Motorization

Summary:
If the bottom rail stops too early or continues moving past the desired position, use the built-in limit buttons to reset the correct upper and lower stop points.

Applies To:
Vignette®, Duette®, Hard-Wire Motorization

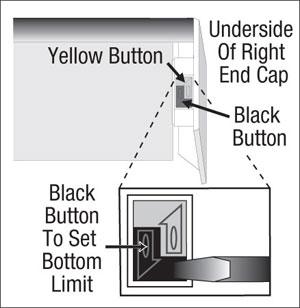

Adjust the Lower Limit (Black Button)

1. Press the black button until it clicks into a recessed position.

2. If the bottom rail stops before reaching the desired lower position, press DOWN on the wall switch until the rail reaches the correct spot.

3. If the bottom rail moves past the desired lower position, press UP on the wall switch until the rail stops where you want it.

4. Release the black button by pressing it again.

Adjust the Upper Limit (Yellow Button)

1. Press the yellow button until it clicks into a recessed position.

2. If the bottom rail stops before reaching the desired upper position, press UP on the wall switch until the rail reaches the correct spot.

3. If the bottom rail raises farther than the desired upper position, press DOWN on the wall switch until the rail stops where you want it.

4. Release the yellow button by pressing it again.

Note: Always release the yellow button once the bottom rail reaches the very top (end caps in contact with the headrail). Allowing the motor to run past this point can damage the motor and shade.
