Learn how to restore smooth operation and alignment for Luminette® Privacy Sheers manufactured before 2003. This guide covers common repairs, including swivel plate installation, tether assembly replacement, and pinion clip adjustment, and explains repair service limitations for older systems.
Applies To:
Luminette®
Repais
1. Install Swivel Plate
2. Replace Tilt Reduction Pinion Clips
Support
3. Repair Service Eligibility
4. Need More Help?
Install Swivel Plate
If a swivel plate becomes loose or detaches from the bulkhead, your Luminette® vanes may no longer rotate as expected. Replacing the plate restores the connection between the vane assembly and the tilt mechanism, allowing smooth and consistent operation.

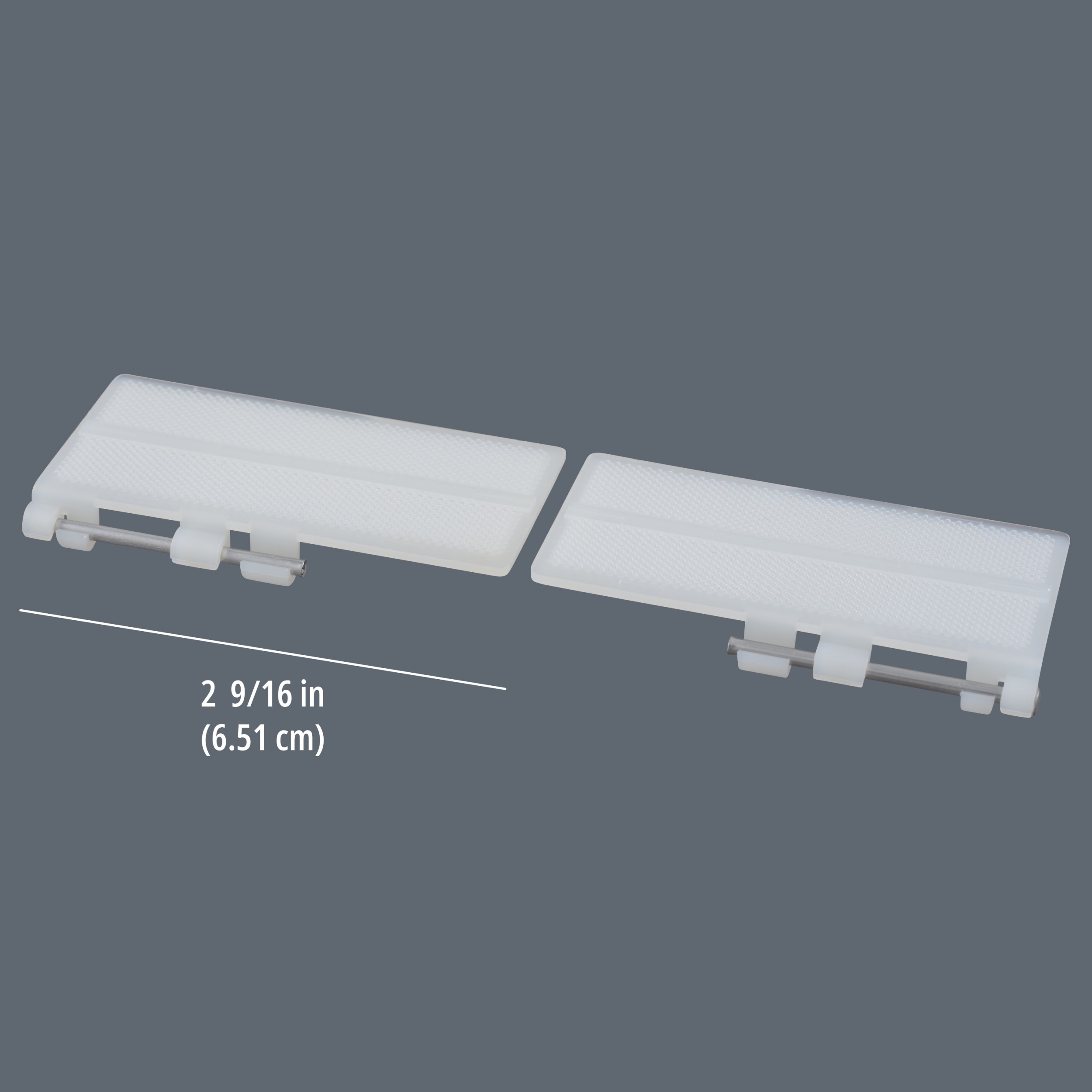

Need to order a swivel plate replacement? Use #1035151 at parts.hunterdouglas.com.
Need to order a new Lead Carrier Assembly? Use #4250129126 or #4250127126 at parts.hunterdouglas.com.

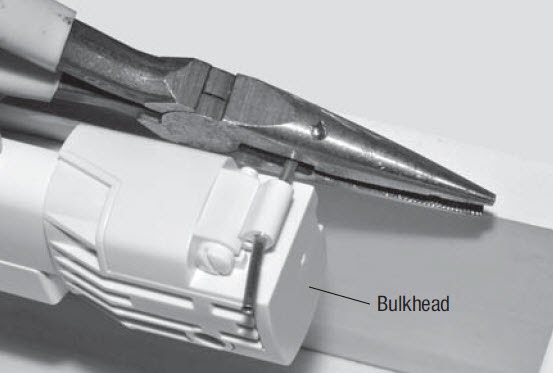

- Snip the end of the damaged rivet.
- Carefully pull the rivet from the bulkhead.

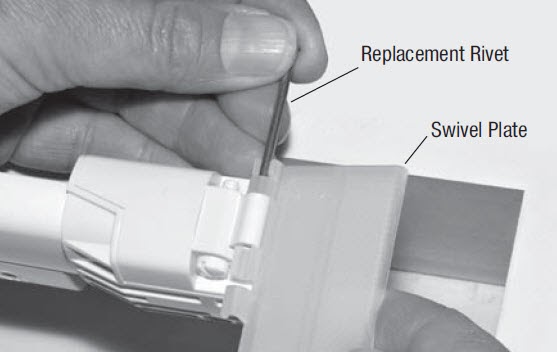

- Align the replacement swivel plate and rivet.

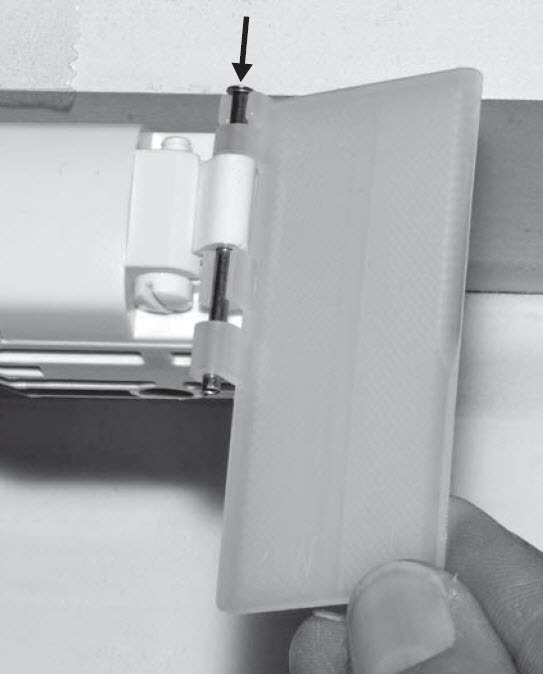

- Slide the new rivet into position through the aligned holes.
- Proceed with attaching the plate to the motor or swivel arm if applicable.
Replace Tilt Reduction Pinion Clips
If your vanes look uneven or don’t tilt together when you rotate the wand, the tilt reduction pinion clip may be broken or out of place. Replacing the clip realigns the vane carriers so they tilt smoothly and evenly, restoring a uniform appearance and consistent light control.
Need to order a new Pinion Clip? Use #4250142000 at parts.hunterdouglas.com.
Need to order headrail scissors? Use #4250076000 at parts.hunterdouglas.com.

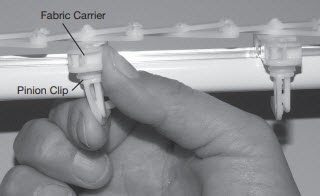

- Place your thumb on the fabric carrier and the top of the broken pinion clip.
- Use your forefinger to pull the lower part of the clip until it snaps out.
- Rotate all clips 90° so the long teeth face away from the opening on the carrier.
- Hold the new clip 90° to the rail and push it into the carrier until it snaps in place.
- Rotate the new clip to match others.
- Use the wand to rotate clips fully left and right to auto-align. Alternatively, align clips by hand.
Repair Service Eligibility
Luminette® shades manufactured before 2003 with the Combination Wand/Cord system (used from 1997 through June 2013) have very limited replacement parts available. Repairs can only be completed while existing stock remains, and no new parts will be produced once supplies are depleted.
If the required parts are no longer available, the shade cannot be repaired to its original operating system. In these cases, replacement with a current product or operating system may be the only option.
For questions about installation, operation, or care, see our article Where can I find installation and user guides for my shade? for details on finding the right instructions and resources for your product.
Need More Help?
If you have additional questions, we recommend reaching out to your original dealer or installer for support.
